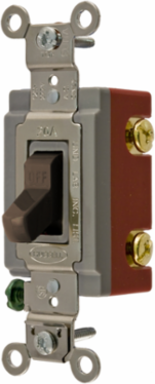

Hubbell Wiring Device-Kellems HBL1221 Extra Heavy Duty Toggle Switch, 20A 120/277V AC, Brown, 4.06 Inch
- MPN: HBL1221
- UPC: 783585431321
- PPN: HBL-HBL1221
- UNSPSC: 39122211
CAD
$70.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Brown Toggle
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL1221 AutoCAD Drawing
- Current / Amperage Rating
- 20 A
- Height
- 1.87 in
- Length
- 4.06 in
- Temperature Rise - Max.
- 30°C maximum at rated current
- Application
- Back and Side Wired
- Number of Poles
- Single Pole
- Size
- 4.06 in x 1.31 in x 1.87 in
- Type
- Toggle
- Voltage Rating Description
- 120-277 VAC
- Width
- 1.31 in
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Single Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 1221P
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.05 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 10.870 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 976.500 lb.
- NAICS Code
- 3359315101
Country of OriginChina
Dimensions4.06 in x 1.31 in x 1.87 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Amperage Rating20 A
ColorBrown
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating120-277 VAC
Weight0.2 lb.
ConnectivityBack and Side Wired
Number Of PolesSingle Pole
Wire Size#14 AWG to #10 AWG
Description - InvoiceSP TOG, IND GRD, 20A 120/277V, BR
Harmonization Code8536509901
MSDS FlagNo
Sub Class CodeA16A240
SeriesExtra Heavy Duty Series
BOX SIZE3.700x9.900x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585431321
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585431320
Pallet Length48.000 in
Pallet Width40.000 in
