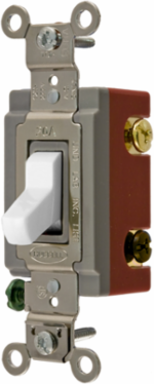

Hubbell Wiring Device-Kellems HBL1223W Extra Heavy Duty Toggle Switch, 20A 120/277V AC, 4.06 Inch x 1.31 Inch x 1.87 Inch
- MPN: HBL1223W
- UPC: 783585432007
- PPN: HBL-HBL1223W
- UNSPSC: 39122211
CAD
$84.34
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, White Toggle
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL1223W AutoCAD Drawing
- Country of Origin
- China
- Dimensions
- 4.06 in x 1.31 in x 1.87 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Action
- SPDT
- Application
- Back and Side Wired
- Number of Poles
- Single Pole
- Size
- 4.06 in x 1.31 in x 1.87 in
- Type
- Toggle
- Voltage Rating Description
- 120-277 VAC
- Width
- 1.31 in
- Connectivity
- Back and Side Wired
- Number Of Poles
- Single Pole
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- 3 WAY TOG, IND GRD, 20A 120/277V, WH
- Harmonization Code
- 8536509999
- MSDS Flag
- No
- Sub Class Code
- A16A240
- Series
- Extra Heavy Duty
- BOX SIZE
- 3.500x9.900x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585432007
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585432006
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 2 Display TextEmergency Preparedness for Healthcare
Current / Amperage Rating20 A
Height1.87 in
Length4.06 in
Temperature Rise - Max.30°C maximum at rated current
Amperage Rating20 A
ColorWhite
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating120-277 VAC
Weight0.2 lb.
General Literature Asset 1 Display TextHealthcare Product Solutions
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleThree Way
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number1223WHIG
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight5.610 lb.
Lowest Level UOMEach
Pallet Height44.100 in
Pallet Weight1026.000 lb.
NAICS Code3359315101
