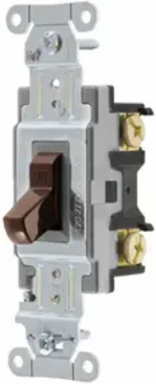

Hubbell Wiring Device-Kellems CS120 Toggle Switch, Single Pole 20A 120/277V AC, 4.18 Inch x 1.49 Inch x 1.83 Inch
- MPN: CS120
- UPC: 783585901107
- PPN: HBL-CS120
- UNSPSC: 39122211
CAD
$6.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Toggle Switch, Commercial Grade, Single-Pole, 20A 120/277V AC, Side Wired
Features
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Number of Poles | Single Pole |
| Overload | 4.8 times rated current for 100 cycles |
| Operating Temperature | -40C to 75C |
| Length | 4.18 in |
| Height | 1.83 in |
| Connectivity | Side Wired Only |
| Flammability | UL 94V-2 |
| Color | Brown |
| Voltage | 120-277 V AC |
|---|---|
| Dielectric Strength | 1500 V AC minimum for 1 minute |
| Temperature Rise | 30C max at rated current |
| Dimensions | 4.18 in x 1.49 in x 1.83 in |
| Width | 1.49 in |
| Wire Size | #14 AWG to #10 AWG solid and stranded copper |
| Material | Nylon (Base), Thermoplastic Black (Base), Thermoplastic Gray (Top), Silver Alloy (Contacts), Brass (Terminal Screws), Zinc Plated Steel (Auto Grounding Mounting Bridge), Brass Green (Ground Screw) |
| Standards | UL Listed, RoHS Compliant |
| Country of Origin | CN |
