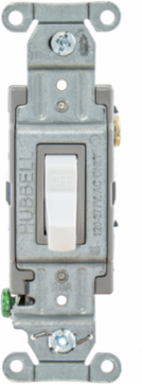

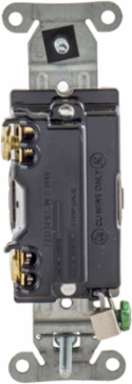

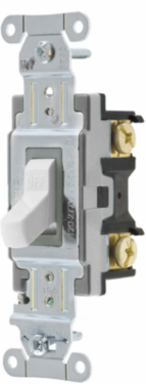

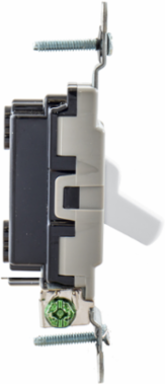

Hubbell Wiring Device-Kellems CSB115W Toggle Switch 15A 120/277V AC Single Pole Back & Side Wired White
- MPN: CSB115W
- UPC: 783585153780
- PPN: HBL-CSB115W
- UNSPSC: 39122211
CAD
$5.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, White
Features
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Overload Rating
- 4.8x rated current for 100 cycles
- Operating Temperature
- -40 C to 75 C max continuous
- Max Continuous Current
- 15 A
- Size
- 4.18 in x 1.49 in x 1.83 in
- Width
- 1.49 in
- Type
- Toggle
- Wiring
- Back and Side Wired
- Material
- Nylon
- Bridge Material
- Steel, Zinc Plated
- Base Material
- Thermoplastic, Black
- Terminal Screws Material
- Brass
- Flammability
- UL 94V-2
- Country of Origin
- China
- Series
- General Purpose
Voltage120-277 V AC
Temperature Rise30 C max at rated current
Dielectric Voltage1500 V AC for 1 min
Max Working Voltage277 V AC
Length4.18 in
Height1.83 in
Pole TypeSingle Pole
Terminal Wire Size#14 AWG min - #10 AWG max solid and stranded copper
Toggle MaterialNylon
Top MaterialThermoplastic, Gray
Contacts MaterialSilver Alloy
Ground Screw MaterialBrass (Green)
Standards ComplianceUL Listed, RoHS Compliant
ColorWhite
