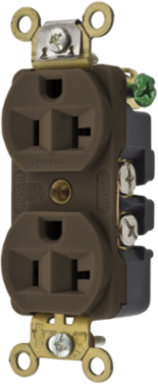

Hubbell Wiring Device-Kellems HBL5352 Industrial Grade Duplex Receptacle 20A 125V 2-Pole 3-Wire Brown
- MPN: HBL5352
- UPC: 783585434964
- PPN: HBL-HBL5352
CAD
$15.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack.
Features
- Slender/compact design
- Brass Mounting Strap
- Triple wipe contacts
Documentation & Downloads
Specifications
Dimensions
- Dimensions
- 3.28 in x 1.33 in x 1.05 in
- Height
- 1.05 in
- Weight
- 0.2 lb
Display SizeStandard Sized Product
Length3.28 in
Width1.33 in
Certifications and Compliance
- Nema Rating
- 5-20R
Conductor Related
- Number Of Wires
- 3-Wire
Wire Size#12 AWG to #10 AWG
General
- Application
- Extra Heavy Duty Compact
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Traditional Duplex
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Style
- Finder Groove Face
- UPC
- 783585434964
ColorBrown
Horsepower - Maximum1
Material - Mounting HardwareScrew Mounting
OEM Brand NameHubbell Wiring Device-Kellems
SeriesHeavy Duty
TypeStandard Duplex
Electrical Ratings
- Amperage Rating
- 20 A
- Current / Amperage Rating
- 20 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 VAC
- Wattage
- 2500 W
ConnectivityBack and Side Wired Screw Terminals
Current Rating20 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
