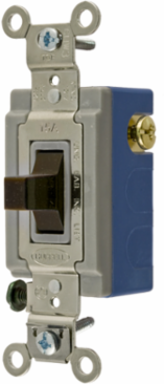

Hubbell Wiring Device-Kellems HBL1556 Industrial Grade Momentary Toggle Switch, 15A 120/277V AC, 4.06 Inch
- MPN: HBL1556
- UPC: 783585432748
- PPN: HBL-HBL1556
- UNSPSC: 39122211
CAD
$88.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 15A 120/277V AC, Terminal Screws, Brown Toggle
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
- Momentary Contact
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | HBL1556 AutoCAD Drawing |
|---|---|
| Current / Amperage Rating | 15 A |
| Height | 1.89 in |
| Length | 4.06 in |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Amperage Rating | 15 A |
| Color | Brown |
| Number of Poles | Single Pole |
| Size | 4.06 in x 1.31 in x 1.89 in |
| Standard | UL Listed |
| Voltage Rating | 120-277 VAC |
| Weight | 0.2 lb. |
| Connectivity | Back and Side Wired |
| Number Of Poles | Single Pole |
| Wire Size | #14 AWG to #10 AWG |
| Description - Invoice | MOM TOG, 15A, 120/277V, SPDT, BR |
| Harmonization Code | 8536509999 |
| MSDS Flag | No |
| Sub Class Code | A16A240 |
| Series | Extra Heavy Duty |
| BOX SIZE | 3.400x9.900x4.600 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585432748 |
| Case - Total Units | 50 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585432747 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Country of Origin | China |
|---|---|
| Dimensions | 4.06 in x 1.31 in x 1.89 in |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only |
| Action | SPDT |
| Application | Back and Side Wired |
| Contact Configuration | Momentary |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Special Features | Momentary Contact |
| Type | Toggle |
| Voltage Rating Description | 120-277 VAC |
| Width | 1.31 in |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Style | Single Pole Double Throw |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 1556 |
| Current Rating | 15 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.2 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 11.700 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 44.100 in |
| Pallet Weight | 1053.000 lb. |
| NAICS Code | 3359315101 |
