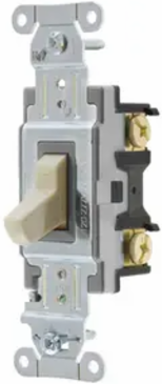

Hubbell Wiring Device-Kellems CSB115I Toggle Switch, Commercial Grade, 15A 120/277V AC, Ivory, 4.18 x 1.49 x 1.83 Inch
- MPN: CSB115I
- UPC: 783585153766
- PPN: HBL-CSB115I
- UNSPSC: 39122211
CAD
$5.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Ivory
Features
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.18 in x 1.49 in x 1.83 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Temperature Rise - Max.
- 30°C maximum at rated current
- Color
- Ivory
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Width
- 1.49 in
- Connectivity
- Back and Side Wired
- Number Of Poles
- Single Pole
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- SWITCH, SPEC, SP, 15A 120/277V, B+S, IV
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A250
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.495 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 792.000 lb.
- NAICS Code
- 3359315101
Current / Amperage Rating15 A
Height1.83 in
Length4.18 in
Standards - RoHS Compliance StatusCM
Amperage Rating15 A
Number of PolesSingle Pole
Size4.18 in x 1.49 in x 1.83 in
TypeToggle
Weight0.15 lb.
Engineering Drawing 1 Display TextCSB115I AutoCAD Drawing
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleSingle Pole
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberBS115I
Current Rating15 A
SeriesGeneral Purpose
BOX SIZE3.400x9.900x4.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585153766
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585153765
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
