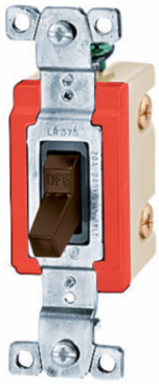

Hubbell Wiring Device-Kellems HBL18203CN Industrial Grade Toggle Switch, 15A 347V AC, 4.06 Inch x 1.3 Inch x 1.86 Inch
Hubbell Wiring Device-Kellems HBL18203CN Industrial Grade Toggle Switch, 15A 347V AC, 4.06 Inch x 1.3 Inch x 1.86 Inch
- MPN: HBL18203CN
- UPC: 783585924694
- PPN: HBL-HBL18203CN
- UNSPSC: 39122211
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$27.92/ EA
Description
Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 15A 347V AC, Terminal Screws, Ivory
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
Specifications
Specifications
- Country of Origin
- China
- Dimensions
- 4.06 in x 1.3 in x 1.86 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Action
- SPDT
- Application
- General Purpose
- Number of Poles
- Single Pole
- Size
- 4.06 in x 1.3 in x 1.86 in
- Type
- Toggle
- Voltage Rating Description
- 347 VAC
- Width
- 1.3 in
- Connectivity
- Back and Side Wired
- Number Of Poles
- Single Pole
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- 3 WAY TOG, IND GRD, 15A 347V, BR
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.2 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Height1.86 in
Length4.06 in
Temperature Rise - Max.30°C maximum at rated current
Amperage Rating15 A
ColorBrown
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating347 VAC
Weight0.2 lb.
Engineering Drawing 1 Display TextHBL18203CN AutoCAD Drawing
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleThree Way
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A240
SeriesExtra Heavy Duty
BOX SIZE3.548x9.858x4.298 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585924694
Case Weight10.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
