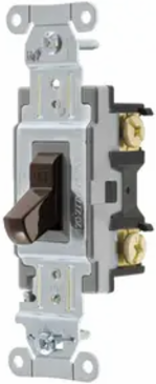

Hubbell Wiring Device-Kellems CS115 Commercial Grade Toggle Switch, 15A 120/277V AC, 4.18 Inch x 1.49 Inch x 1.83 Inch
Hubbell Wiring Device-Kellems CS115 Commercial Grade Toggle Switch, 15A 120/277V AC, 4.18 Inch x 1.49 Inch x 1.83 Inch
- MPN: CS115
- UPC: 783585901008
- PPN: HBL-CS115
- UNSPSC: 39122211
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$4.23/ EA
Description
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, BrownToggle.
Features
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
Specifications
- Engineering Drawing 1 Display Text
- CS115 AutoCAD Drawing
- Country of Origin
- China
- Dimensions
- 4.18 in x 1.49 in x 1.83 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Temperature Rise - Max.
- 30°C maximum at rated current
- Color
- Brown
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Width
- 1.49 in
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Single Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- S115B
- Current Rating
- 15 A
- Series
- General Purpose
- BOX SIZE
- 3.600x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585901008
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585901007
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Current / Amperage Rating15 A
Height1.83 in
Length4.18 in
Standards - RoHS Compliance StatusCM
Amperage Rating15 A
Number of PolesSingle Pole
Size4.18 in x 1.49 in x 1.83 in
TypeToggle
Weight0.15 lb.
ConnectivitySide Wired Only
Number Of PolesSingle Pole
Wire Size#14 AWG to #10 AWG
Description - InvoiceSWITCH, SPEC, SP, 15A 120/277V, BR
Harmonization Code8536509901
MSDS FlagNo
Sub Class CodeA16A250
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.8 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight5.756 lb.
Lowest Level UOMEach
Pallet Height45.000 in
Pallet Weight765.000 lb.
Certifications
- EU RoHS Indicator
- Yes
