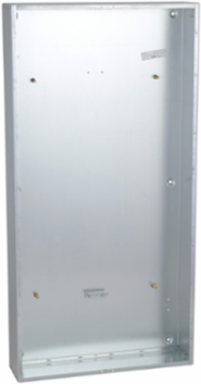

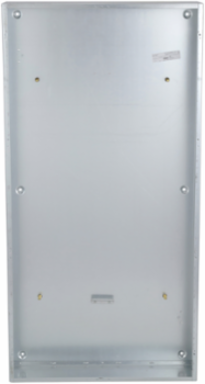

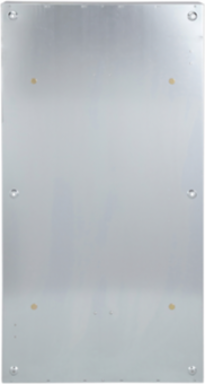

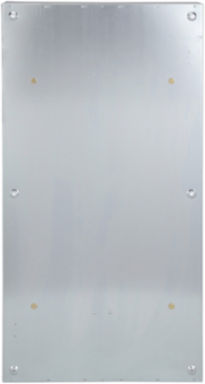

Square D HC3264B I-Line Panelboard Enclosure, 32 Inch W x 64 Inch H x 8.25 Inch D, 225-800 A
Square D HC3264B I-Line Panelboard Enclosure, 32 Inch W x 64 Inch H x 8.25 Inch D, 225-800 A
- MPN: HC3264B
- UPC: 785901790372
- PPN: SCH-HC3264B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$374.78/ EA
Description
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCM I-Line panelboard enclosure has a NEMA 1 degree of protection. This enclosure has current ratings of 225A, 400A & 800A. Dimensions for this enclosure are 1626 mm (H), 813 mm (W),241 mm (D). This product comes with an 18 month warranty.
Specifications
Specifications
- Range Of Product
- I-Line
- Device Application
- panelboard
Product Or Component Typeenclosure
Device Short NameHCM
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407017EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Complementary

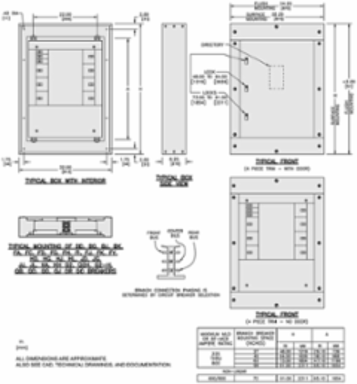

- Height
- 64 in
- Depth
- 8.25 in
- Enclosure Nominal Depth
- 241 mm || 210 mm
- Enclosure Nominal Width
- 813 mm
[In] Rated Current225 A || 400 A || 800 A || 600 A
Enclosure Nominal Height1626 mm
Net Weight44.94 kg
Environment
- Nema Degree Of Protection
- NEMA 1
StandardsCSA || UL
