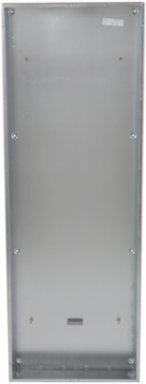

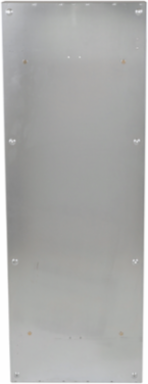

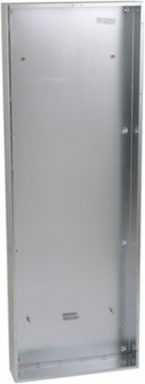

Square D HC3291B I-Line Panelboard Enclosure, 32 Inch W x 91 Inch H, 400A/800A Rated Current

I-Line Panelboard Enclosure, 32 Inch W x 91 Inch H, 400A/800A Rated Current - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/09a8faace0e316e04c191232303a9669728962e8-medium.png

I-Line Panelboard Enclosure, 32 Inch W x 91 Inch H, 400A/800A Rated Current

Square D HC3291B I-Line Panelboard Enclosure, 32 Inch W x 91 Inch H, 400A/800A Rated Current

MPN: HC3291B
UPC: 785901790396
PPN: SCH-HC3291B

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$570.95/ EA

Qty:

Loading add to cart quantity...

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCM I-Line panelboard enclosure has a NEMA 1 degree of protection. This enclosure has current ratings of 225A, 400A & 800A. Dimensions for this enclosure are 2311 mm (H), 813 mm (W),210 mm (D). This product comes with an 18 month warranty.

Specifications

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1407017EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Specifications

Range Of Product: I-Line

Device Application: panelboard

Product Or Component Typeenclosure

Device Short NameHCM

Complementary

Height: 91 in

Depth: 8.25 in

Enclosure Nominal Depth: 210 mm || 241 mm

Enclosure Nominal Width: 813 mm

[In] Rated Current400 A || 800 A || 225 A || 600 A

Enclosure Nominal Height2311 mm

Net Weight61.6 kg

Environment

Nema Degree Of Protection: NEMA 1

StandardsUL || CSA
