Weidmuller 1497700000 HDC 04A AWLU
- MPN: 1497700000
- PPN: WDM-1497700000
CAD
$11.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

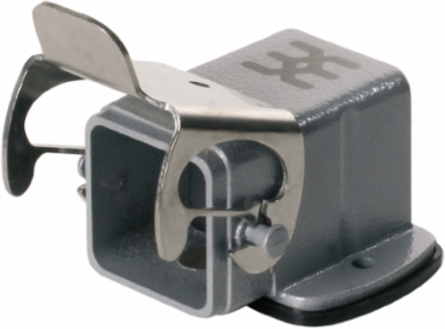

HDC enclosures, Size: 1, Protection degree: IP65, Open base, Side-locking clamp on lower side, Standard
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP65
Tightening torque0.5 Nm
Approvals
- Approvals
- CE
Dimensions And Weights
- Width
- 36.5 mm
- Height
- 52.8 mm
- Depth
- 25.7 mm
- Mounting dimension - width
- 30 mm
Width (inches)1.437 inch
Height (inches)2.079 inch
Depth (inches)1.012 inch
Net weight38 g
General Descriptions
- Type of locking
- End-locking clamp
- Protection degree
- IP65
Size1

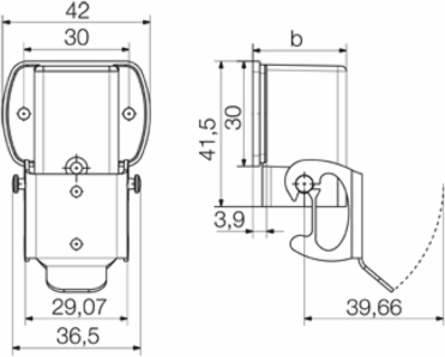

Dimensions
- Cable entry
- angled
- Height of housing B
- 26.7 mm
- Total length housing
- 41.5 mm
- Width housing C
- 25.2 mm
Height of base B13 mm
Hole pitch length A230 mm
Width base C142 mm
Version
- Cable entry
- angled
- Design
- Standard
- Design of locking system
- Side-locking clamp on lower side
- Size
- 1
- Tightening torque
- 0.5 Nm
- Type
- Bulkhead (feed-through)
Clamp versionSide-locking clamp
Design of housingOpen base
SealingNBR
Suitable for ModuPlugNo
Top part/bottom part/lidlower part
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1, DIBP 84-69-5
Design
- Product family
- HDC enclosures
- Type
- Bulkhead (feed-through)
Product typeEnclosures
Cable entryangled
Temperatures
- Limit temperature
- -40 °C ... 125 °C
