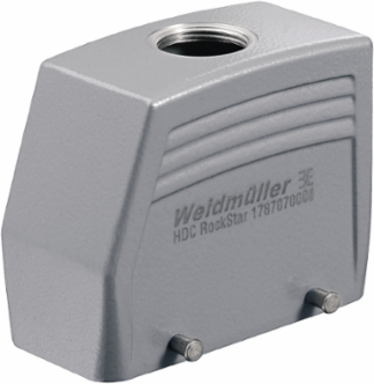

Weidmuller 1787070000 HDC 40D TOBU 1M25G
- MPN: 1787070000
- PPN: WDM-1787070000
CAD
$25.99
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC enclosures, Size: 6, Protection degree: IP65, Cable entry from top, Plug housing, Side-locking clamp on lower side, high, Size of cable entries: M 25
Documentation & Downloads
Specifications
General Data
| EMC housings | No |
|---|---|
| Material of locking element | Stainless steel, rust-proof |
| Surface finish | Powder coating |
| Housing main material | diecast aluminium |
|---|---|
| Protection degree | IP65 |
| Tightening torque | 1.2 Nm |
Approvals
| Approvals | CE, cURus |
|---|---|
| UL File Number Search | E92202 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 57.8 mm |
|---|---|
| Height | 76 mm |
| Depth | 93.3 mm |
| Net weight | 272 g |
| Width (inches) | 2.276 inch |
|---|---|
| Height (inches) | 2.992 inch |
| Depth (inches) | 3.673 inch |
General Descriptions
| Size of cable entries | M 25 |
|---|---|
| Size | 6 |
| Type of locking | Side-locking clamp |
|---|---|
| Protection degree | IP65 |

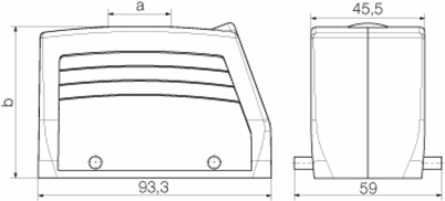

Dimensions
| Cable entry | w. threading |
|---|---|
| Total length housing | 93.3 mm |
| Height of housing B | 76 mm |
|---|---|
| Width housing C | 43 mm |
Version
| Cable entry | w. threading |
|---|---|
| Design | high |
| Design of locking system | Side-locking clamp on lower side |
| Number of cable entry on top | 1 |
| Size | 6 |
| Suitable for ModuPlug | Yes |
| Top part/bottom part/lid | upper part |
| Clamp version | Side-locking clamp |
|---|---|
| Design of housing | Cable entry from top, Plug housing |
| Internal thread | M 25 |
| Number of cable entry sideways | 0 |
| Size of cable entries | M 25 |
| Tightening torque | 1.2 Nm |
| Type | Plug |
Material
| Colour | grey |
|---|
Classifications
| ETIM 6.0 | EC000437 |
|---|---|
| eClass 9.0 | 27-44-02-02 |
| eClass 10.0 | 27-44-02-02 |
| ETIM 7.0 | EC000437 |
|---|---|
| eClass 9.1 | 27-44-02-02 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Design
| Product family | HDC enclosures |
|---|---|
| Type | Plug |
| Product type | Enclosures |
|---|---|
| Cable entry | w. threading |
Temperatures
| Limit temperature | -40 °C ... 125 °C |
|---|
