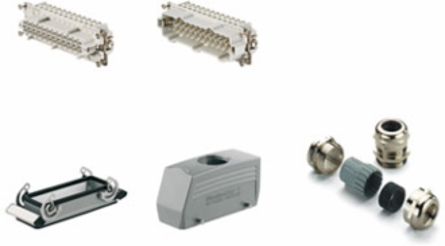

Weidmuller 1712690000 HDC-KIT-HE 24.131
- MPN: 1712690000
- PPN: WDM-1712690000
CAD
$99.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RockStar® HDC kits-Heavy-duty connectors, Kit, HE, Size: 8, Poles: 24, Screw connection, 500 V, 16 A, diecast aluminium, PG 21
Documentation & Downloads
Specifications
General Data
- Cable glands
- PG 21
- Material
- diecast aluminium
- Rated current (DIN EN 61984)
- 16 A
- Series
- HE
Connection type PEScrew connection
Number of poles24
Rated voltage (DIN EN 61984)500 V
Size8
Approvals
- Approvals
- EAC
Dimensions And Weights
- Net weight
- 761.68 g
General Descriptions
- Number of poles
- 24
- Size
- 8
Size of cable entriesPG 21
Version
- Conductor cross-section, max.
- 2.5 mm²
- Material
- diecast aluminium
- Min. torque for main contact
- 0.5 Nm
- Surface finish
- Powder coating
Conductor cross-section, min.0.5 mm²
Max. torque for main contact0.55 Nm
Size8
Type of connectionScrew connection
Material
- Colour
- grey
Materialdiecast aluminium
Connection Data
- Conductor cross-section, min.
- 0.5 mm²
Conductor cross-section, max.2.5 mm²
Classifications
- ETIM 6.0
- EC002943
- eClass 9.0
- 27-44-02-92
- eClass 10.0
- 27-44-02-92
ETIM 7.0EC002943
eClass 9.127-44-01-90
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1, DIBP 84-69-5
Design
- Product family
- HDC kits
- Type of connection
- Screw connection
Product typeKit
Temperatures
- Limit temperature
- -40 °C ... 100 °C
