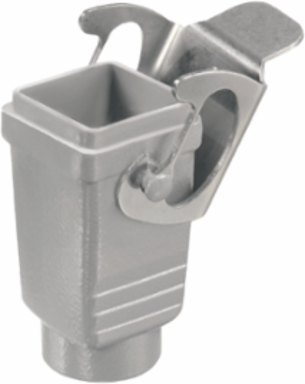

Weidmuller 1652500000 HDC 04A KOLU 1PG11G
- MPN: 1652500000
- PPN: WDM-1652500000
CAD
$7.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
HDC enclosures, Size: 1, Protection degree: IP65, Closed housing, Side-locking clamp on lower side, Standard, Size of cable entries: PG 11
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP65
Tightening torque0.5 Nm
Approvals
- Approvals
- CE, cURus
- UL File Number Search
- E92202
ROHSConform

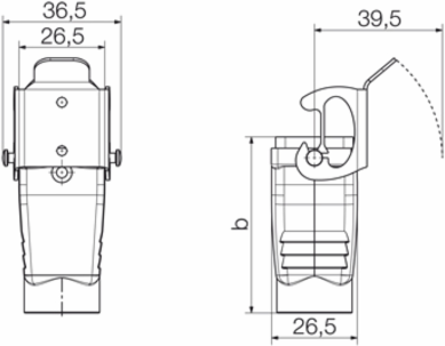

Dimensions And Weights
- Width
- 36.5 mm
- Height
- 77.5 mm
- Depth
- 26.5 mm
- Net weight
- 41 g
Width (inches)1.437 inch
Height (inches)3.051 inch
Depth (inches)1.043 inch
General Descriptions
- Size of cable entries
- PG 11
- Size
- 1
Type of lockingEnd-locking clamp
Protection degreeIP65
Dimensions
- Cable entry
- w. threading
- Total length housing
- 26.5 mm
Height of housing B53.5 mm
Width housing C26.8 mm
Version
- Cable entry
- w. threading
- Design
- Standard
- Design of locking system
- Side-locking clamp on lower side
- Number of cable entry on top
- 1
- Size
- 1
- Suitable for ModuPlug
- No
- Top part/bottom part/lid
- lower part
Clamp versionSide-locking clamp
Design of housingClosed housing
Internal threadPG 11
Number of cable entry sideways0
Size of cable entriesPG 11
Tightening torque0.5 Nm
Typecoupling extension
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Design
- Product family
- HDC enclosures
- Type
- coupling extension
Product typeEnclosures
Cable entryw. threading
Temperatures
- Limit temperature
- -40 °C ... 125 °C
