Weidmuller 1652980000 HDC 06B SDLU 1PG16G
- MPN: 1652980000
- PPN: WDM-1652980000
CAD
$35.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

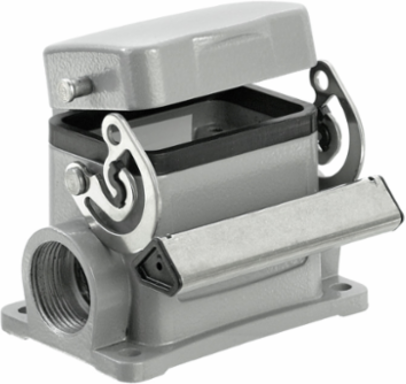

HDC enclosures, Size: 3, Protection degree: IP65, Closed base, End-locking clamp, lower side, Standard, with cover, Size of cable entries: PG 16
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Protection degree
- IP65
- Tightening torque
- 1.2 Nm
Housing main materialdiecast aluminium
Protection class noteProtection class with secured cover: IP 65
Surface finishPowder coating
Approvals
- Approvals
- CE, cURus
UL File Number SearchE92202
Dimensions And Weights
- Width
- 92.5 mm
- Height
- 72 mm
- Mounting dimension - width
- 70 mm
- Net weight
- 295 g
Width (inches)3.642 inch
Height (inches)2.835 inch
Mounting dimension - height40 mm
General Descriptions
- Size of cable entries
- PG 16
- Size
- 3
Type of lockingEnd-locking clamp
Protection degreeIP65

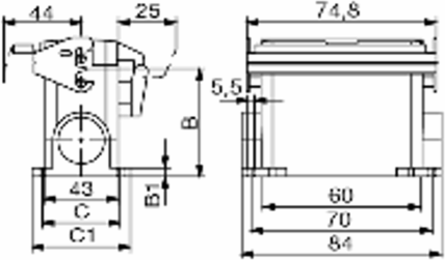

Dimensions
- Cable entry
- w. threading
- Height of housing B
- 54 mm
- Total length housing
- 60 mm
- Width housing C
- 43 mm
Height of base B15 mm
Hole pitch length A270 mm
Width base C154.5 mm
Version
- Cable entry
- w. threading
- Cover
- with cover
- Design of cover
- with cover
- Design of locking system
- End-locking clamp, lower side
- Number of cable entry on top
- 0
- Sealing
- NBR
- Size of cable entries
- PG 16
- Tightening torque
- 1.2 Nm
- Type
- Base housing
Clamp versionEnd-locking clamp
DesignStandard
Design of housingClosed base
Internal threadPG 16
Number of cable entry sideways1
Size3
Suitable for ModuPlugNo
Top part/bottom part/lidlower part
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1, DIBP 84-69-5
Design
- Product family
- HDC enclosures
- Type
- Base housing
Product typeEnclosures
Cable entryw. threading
Temperatures
- Limit temperature
- -40 °C ... 125 °C
