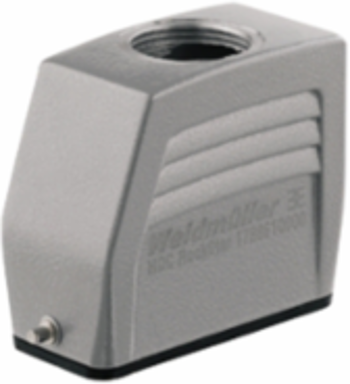

Weidmuller 1663930000 HDC 10A TOLU 1PG16G
- MPN: 1663930000
- PPN: WDM-1663930000
CAD
$12.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
HDC enclosures, Size: 2, Protection degree: IP65, Cable entry from top, Plug housing, End-locking clamp, lower side, Standard, Size of cable entries: PG 16
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP65
Tightening torque0.5 Nm
Approvals
- Approvals
- CE, cURus
UL File Number SearchE92202
Dimensions And Weights
- Width
- 32.5 mm
- Height
- 54 mm
- Depth
- 72.5 mm
- Net weight
- 102 g
Width (inches)1.28 inch
Height (inches)2.126 inch
Depth (inches)2.854 inch
General Descriptions
- Size of cable entries
- PG 16
- Size
- 2
Type of lockingEnd-locking clamp
Protection degreeIP65

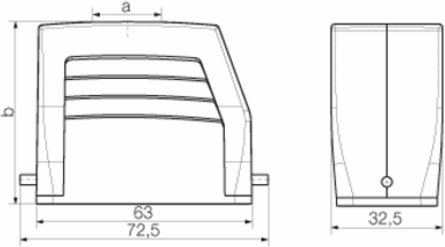

Dimensions
- Cable entry
- w. threading
- Total length housing
- 63 mm
Height of housing B54 mm
Width housing C29.5 mm
Version
- Cable entry
- w. threading
- Design
- Standard
- Design of locking system
- End-locking clamp, lower side
- Number of cable entry on top
- 1
- Sealing
- NBR
- Size of cable entries
- PG 16
- Tightening torque
- 0.5 Nm
- Type
- Plug
Clamp versionEnd-locking clamp
Design of housingCable entry from top, Plug housing
Internal threadPG 16
Number of cable entry sideways0
Size2
Suitable for ModuPlugNo
Top part/bottom part/lidupper part
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1, DIBP 84-69-5
Design
- Product family
- HDC enclosures
- Type
- Plug
Product typeEnclosures
Cable entryw. threading
Temperatures
- Limit temperature
- -40 °C ... 125 °C
