Weidmuller 1665260000 HDC 16B DODQ 4BO
- MPN: 1665260000
- PPN: WDM-1665260000
CAD
$18.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

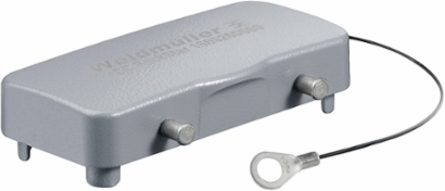

HDC enclosures, Size: 6, Protection degree: IP65, Cover for lower part of housing, Side-locking clamp on lower side, Standard
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP65
Tightening torque1.2 Nm
Approvals
- Approvals
- cURus
- UL File Number Search
- E92202
ROHSConform
Dimensions And Weights
- Width
- 59 mm
- Height
- 17 mm
- Depth
- 93.3 mm
- Net weight
- 79.4 g
Width (inches)2.323 inch
Height (inches)0.669 inch
Depth (inches)3.673 inch
General Descriptions
- Type of locking
- Side-locking clamp
- Protection degree
- IP65
Size6
Dimensions
- Cable entry
- For bases
- Total length housing
- 93.3 mm
Height of housing B18 mm
Width housing C43 mm
Version
- Cable entry
- For bases
- Design
- Standard
- Design of locking system
- Side-locking clamp on lower side
- Suitable for ModuPlug
- Yes
- Top part/bottom part/lid
- Cover
Clamp versionSide-locking clamp
Design of housingCover for lower part of housing
Size6
Tightening torque1.2 Nm
TypeCover
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Design
- Product family
- HDC enclosures
- Type
- Cover
Product typeEnclosures
Cable entryFor bases
Temperatures
- Limit temperature
- -40 °C ... 125 °C
