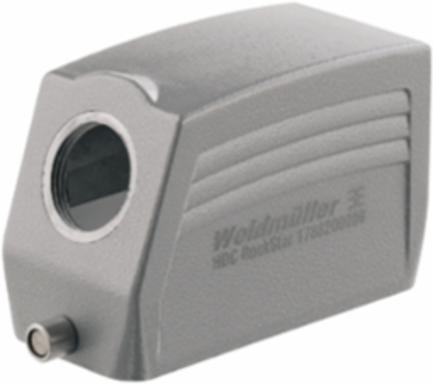

Weidmuller 1804640000 HDC 16B TSLU 1M32G
- MPN: 1804640000
- PPN: WDM-1804640000
CAD
$18.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
HDC enclosures, Size: 6, Protection degree: IP65, Cable entry from side, Plug housing, End-locking clamp, lower side, Standard, Size of cable entries: M 32
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP65
Tightening torque1.2 Nm
Approvals
- Approvals
- CE, cURus
- UL File Number Search
- E92202
ROHSConform
Dimensions And Weights
- Width
- 45.5 mm
- Height
- 61 mm
- Net weight
- 215 g
Width (inches)1.791 inch
Height (inches)2.402 inch
General Descriptions
- Size of cable entries
- M 32
- Size
- 6
Type of lockingEnd-locking clamp
Protection degreeIP65

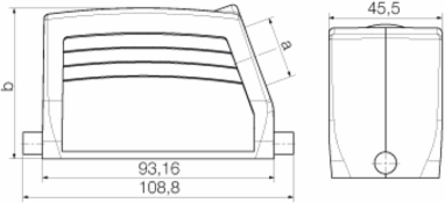

Dimensions
- Cable entry
- w. threading
- Total length housing
- 93.3 mm
Height of housing B61 mm
Width housing C43 mm
Version
- Cable entry
- w. threading
- Design
- Standard
- Design of locking system
- End-locking clamp, lower side
- Number of cable entry on top
- 0
- Size
- 6
- Suitable for ModuPlug
- No
- Top part/bottom part/lid
- upper part
Clamp versionEnd-locking clamp
Design of housingCable entry from side, Plug housing
Internal threadM 32
Number of cable entry sideways1
Size of cable entriesM 32
Tightening torque1.2 Nm
TypePlug
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Design
- Product family
- HDC enclosures
- Type
- Plug
Product typeEnclosures
Cable entryw. threading
Temperatures
- Limit temperature
- -40 °C ... 125 °C
