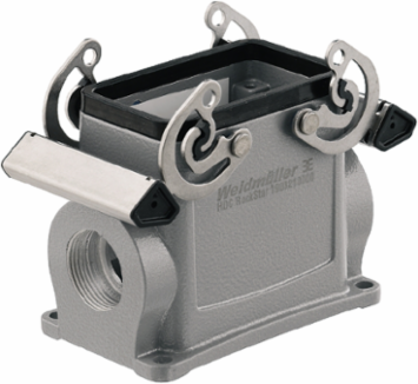

Weidmuller 1654450000 HDC 24D SBU 2PG21G
- MPN: 1654450000
- PPN: WDM-1654450000
CAD
$34.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
HDC enclosures, Size: 4, Protection degree: IP65, Closed base, Side-locking clamp on lower side, high, Size of cable entries: PG 21
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP65
Tightening torque1.2 Nm
Approvals
- Approvals
- CE, cURus
UL File Number SearchE92202
Dimensions And Weights
- Width
- 55.5 mm
- Height
- 74 mm
- Depth
- 115.7 mm
- Mounting dimension - width
- 82 mm
- Net weight
- 353 g
Width (inches)2.185 inch
Height (inches)2.913 inch
Depth (inches)4.555 inch
Mounting dimension - height45 mm
General Descriptions
- Size of cable entries
- PG 21
- Size
- 4
Type of lockingSide-locking clamp
Protection degreeIP65
Dimensions
- Cable entry
- w. threading
- Height of housing B
- 74 mm
- Total length housing
- 73 mm
- Width housing C
- 43 mm
Height of base B15 mm
Hole pitch length A282 mm
Width base C155.5 mm
Version
- Cable entry
- w. threading
- Design
- high
- Design of locking system
- Side-locking clamp on lower side
- Number of cable entry on top
- 0
- Sealing
- NBR
- Size of cable entries
- PG 21
- Tightening torque
- 1.2 Nm
- Type
- Base housing
Clamp versionSide-locking clamp
Design of housingClosed base
Internal threadPG 21
Number of cable entry sideways2
Size4
Suitable for ModuPlugYes
Top part/bottom part/lidlower part
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1, DIBP 84-69-5
Design
- Product family
- HDC enclosures
- Type
- Base housing
Product typeEnclosures
Cable entryw. threading
Temperatures
- Limit temperature
- -40 °C ... 125 °C
