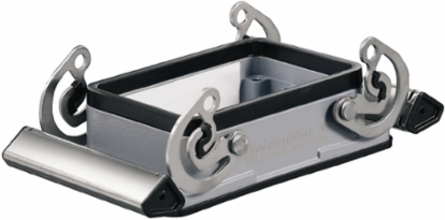

Weidmuller 1665860000 HDC 32A ABU
- MPN: 1665860000
- PPN: WDM-1665860000
CAD
$31.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
HDC enclosures, Size: 7, Protection degree: IP65, Open base, Side-locking clamp on lower side, Standard
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
Protection degreeIP65
Tightening torque1.2 Nm
Approvals
- Approvals
- CE, cURus
UL File Number SearchE92202
Dimensions And Weights
- Width
- 60.5 mm
- Height
- 30 mm
- Mounting dimension - width
- 92 mm
- Net weight
- 175 g
Width (inches)2.382 inch
Height (inches)1.181 inch
Mounting dimension - height42 mm
General Descriptions
- Type of locking
- Side-locking clamp
- Protection degree
- IP65
Size7
Dimensions
- Height of base B1
- 7 mm
- Hole pitch length A2
- 92 mm
- Width base C1
- 60.5 mm
Height of housing B30 mm
Total length housing82 mm
Width housing C56 mm
Version
- Clamp version
- Side-locking clamp
- Design of housing
- Open base
- Sealing
- NBR
- Suitable for ModuPlug
- No
- Top part/bottom part/lid
- lower part
DesignStandard
Design of locking systemSide-locking clamp on lower side
Size7
Tightening torque1.2 Nm
TypeBulkhead (feed-through)
Material
- Colour
- grey
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1, DIBP 84-69-5
Design
- Product family
- HDC enclosures
- Type
- Bulkhead (feed-through)
Product typeEnclosures
Temperatures
- Limit temperature
- -40 °C ... 125 °C
