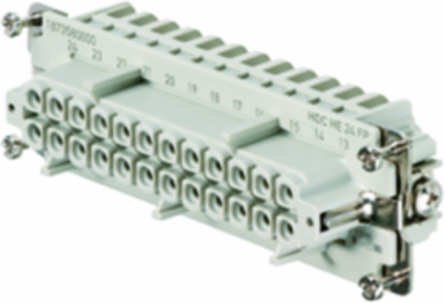

Weidmuller 1873580000 HDC HE 24 FP
- MPN: 1873580000
- PPN: WDM-1873580000
CAD
$19.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HDC insert, Female, 500 V, 16 A, Number of poles: 24, PUSH IN, Size: 8
Documentation & Downloads
Specifications
Additional
| Rated Current | 16 A |
|---|---|
| Rated voltage according to UL/CSA | 600 V AC/DC |
| Temperature Range | -40 C to 125 C |
| Wire Connection Cross Section AWG Range | AWG 20 to AWG 12 |

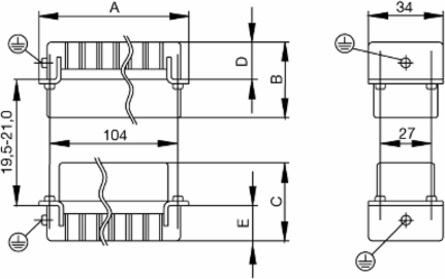

| Depth | 111 mm |
| Height | 33.8 mm |
| Connection Type | PUSH IN |
| Material | Copper alloy |
| Insulating Material Group | IIIa |
| Pollution Severity | 3 |
| Insulation Resistance | 109 |
| Plugging Cycles | 500 |
| Series | HE |
| Rated Voltage | 500 V |
|---|---|
| Number of Poles | 24 |
| Wire Connection Cross Section Range | 0.5 mm2 to 2.5 mm2 |
| Size | 8 |
| Width | 34 mm |
| Net Weight | 99.44 g |
| Type | Female |
| Insulating Material | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Surface Finish | Silver passivated |
| Volume Resistance | 2 m |
| Flammability Rating | UL 94 V-0 |
| Compliance | RoHS Compliant, UL Listed (E92202), cURus, CSA, DNV GL, EAC |
| Color | beige |
