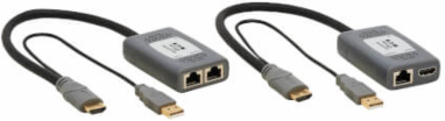

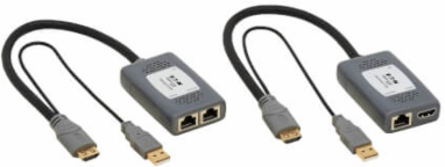

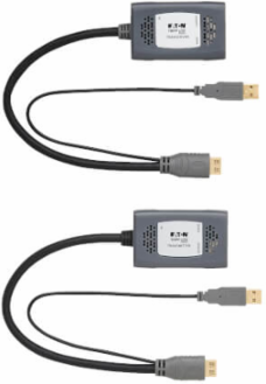

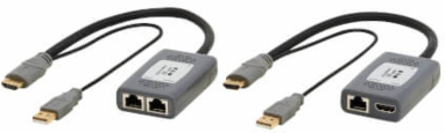

Tripp Lite B127U111PHPH HDMI over Cat6 Extender Kit, Pigtail Transmitter/Receiver, 4K 60 Hz, HDR, 4:4:4, 230 ft, TAA
- MPN: B127U111PHPH
- UPC: 037332281470
- PPN: TRP-B127U-111-PHPH
CAD
$414.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1-Port HDMI over Cat6 Extender Kit, Pigtail Transmitter/Receiver, 4K 60 Hz, HDR, 4:4:4, 230 ft. (70.1 m), TAA
Features
- Pigtail transmitter
- Pigtail receiver
Documentation & Downloads
Specifications
Performance
- Max Supported Video Resolution
- 4K x 2K @ 60 Hz
- HDR Support
- Yes
- Max Supported Color Depth
- 36-bit Deep Color
- Signal Transmission
- Unidirectional
- Operating Temperature Range
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0-85% non-condensing
Supported Resolutions1280x720 (720p); 1920x1080 (1080p); 1920x1200; 2560x1600; 3840x2160 (4K)
Chroma Sub Sampling4:4:4
Transmission Distance230 ft (70 m)
Audio SpecificationPassthrough audio formats including LPCM 2.0/5.1/7.1
Storage Temperature Range5° to 122°F (-15° to 50°C)
Material
- Color
- Gray
- Material of Construction
- Plastic
- Form Factor
- Pigtail
Cable Jacket ColorBlack
Cable Jacket MaterialPVC
Dimensions
- Transmitter Video Input
- HDMI
- HDCP Specification
- 1.4; 2.2
- Side A - Connector 1
- HDMI (Male)
- Side A - Connector 3
- RJ45 (Female)
- Side A - Connector 5
- Micro-USB B (Female)
- Side B - Connector 2
- USB A (Male)
- Side B - Connector 4
- (2) RJ45 (Female)
- Daisy-chainable
- Yes
- Wire Gauge
- 28
- LED Indicators
- Transmitter: x1 Green (Power); Receiver: x1 Green (Power), x1 Orange (Data)
Video Ports DetailsHDCP 1.4; HDCP 2.2
Daisy-Chain PortRJ45 (Female)
Side A - Connector 2USB A (Male)
Side A - Connector 4HDMI (Female)
Side B - Connector 1HDMI (Male)
Side B - Connector 3Micro-USB B (Female)
Power SourceUSB
Recommended Category Cable24 AWG Solid Wire Cat6
Cable Outer Diameter7.3 mm
Reference
- Product Type
- Pigtail Video
- Product Warranty Period
- 1-year limited warranty
TechnologyCat6; HDMI
