Tripp Lite B127A1A1BHBH HDMI over Cat6 Extender Kit, KVM Support, 4K 60Hz, 4:4:4, USB/IR, PoC, HDR, HDCP 2.2, 230 ft., TAA
- MPN: B127A1A1BHBH
- UPC: 037332258625
- PPN: TRP-B127A-1A1-BHBH
CAD
$447.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HDMI over Cat6 Extender Kit, KVM Support, 4K 60Hz, 4:4:4, USB/IR, PoC, HDR, HDCP 2.2, 230 ft., TAA

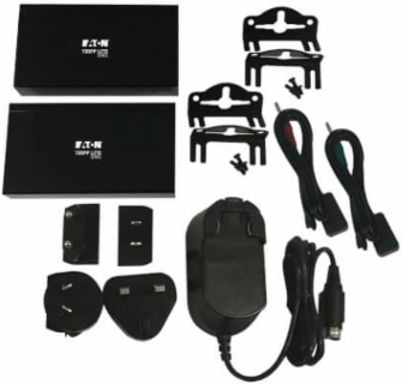

Features

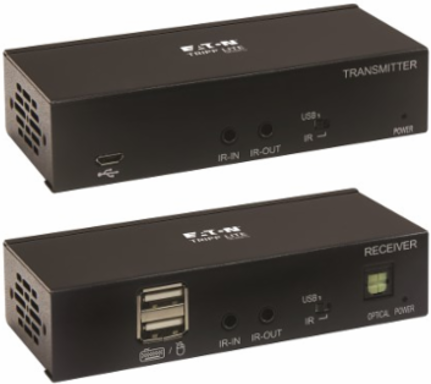

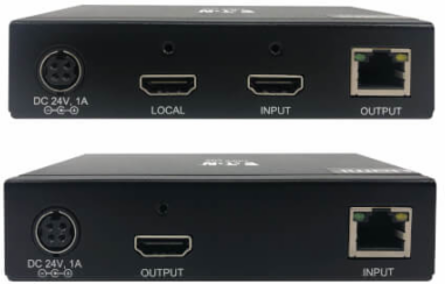

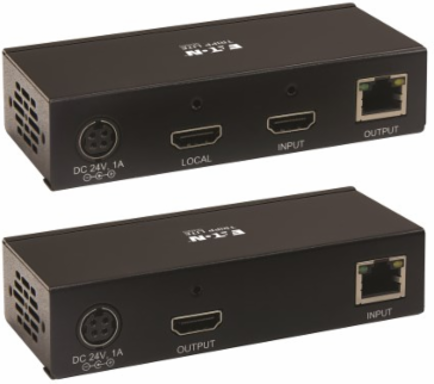

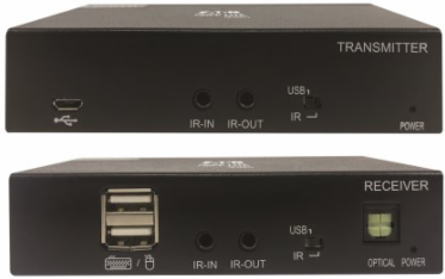

- Transmitter and receiver units included
- External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A); includes 4 international plug adapters (North America, Europe, U.K. and Australia)
- IR-In cable and IR-Out cable included
- Mounting hardware included
Documentation & Downloads
Specifications
Dimensions
- Transmitter Unit Dimensions
- 2.7 x 11.5 x 6.24 in
Receiver Unit Dimensions2.7 x 11.5 x 6.24 in
Material
- Material
- Metal
Form FactorBox; Wall-mount
Compliance
- Product Warranty
- 1-year limited warranty
Reference
- Product Type
- Extender Kit
Recommended CablingSolid Wire Cat6
Performance
- Max Supported Video Resolution
- 3840 x 2160 (4K @ 60Hz)
- Chroma Subsampling
- 4:4:4
- Transmission Distance
- 230 ft
- Audio Output
- Toslink; HDMI
- Technology
- HDMI; Cat6; PoC; IR
- Video Output
- HDMI (Female)
- Daisy-chainable
- No
- AC Power Adapter Output
- 24V / 1A
- Operating Temperature Range
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0-85% non-condensing
HDR SupportYes
Max Supported Color Depth36-bit Deep Color
USB SpecificationUSB 1.1 (up to 12 Mbps)
Audio SpecificationPass-through audio (LPCM 2.0/5.1/7.1)
Video InputHDMI (Female)
Number of Displays1
AC Power Adapter Input100-240V / 50/60Hz / 0.6A
Power SourceTransmitter or Receiver (Included)
Storage Temperature Range5° to 122°F (-15° to 50°C)
