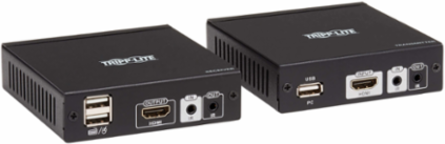

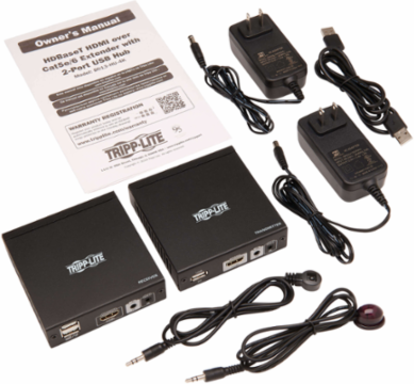

Tripp Lite B013-HU-4K HDMI HDBaseT KVM Console Extender - 4K @ 30 Hz, 230 ft. Signal Range, 2 USB Ports
- MPN: B013-HU-4K
- UPC: 037332241160
- PPN: TRP-B013-HU-4K
CAD
$690.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDMI HDBaseT KVM Console Extender - 4K @ 30 Hz, 230 ft. Signal Range, 2 USB Ports
Features
- Uses existing Cat5e/6 network infrastructure, saving you the expense of new cables
- Delivers 4K picture quality at Ultra HD resolutions up to 3840 x 2160 @ 30 Hz
- Supports DTS-HD, Dolby TrueHD and uncompressed LPCM digital audio with no latency
- IR pass-through feature allows you to control the source while standing in another room
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- KVM Console Extender for Digital Signage or Extending Video in Offices or Command Centers
- Recommended for Digital Signage or Extending Video Across Offices or Command Centers
- Transmits Both 1080p and Uncompressed 4K Video and LPCM Audio with Zero Latency
- IR Pass-Through Technology Lets You Control the Video from the Next Room
- Plug-and-Play Operation for Quick Setup and Immediate Use
Documentation & Downloads
Specifications
Additional
| Max Supported Video Resolution | 3840 x 2160 @ 30Hz |
|---|---|
| Power Supply Input | 100-240V, 50/60 Hz, 0.3A |
| Operating Temperature Range | 32 to 122 F (0 to 50 C) |
| Relative Humidity | 0% to 90% RH, Non-Condensing |
| HDCP Specification | 1.4 |
| 3D Video Supported | Yes |
| Voltage Compatibility | 100 - 240 V AC |
| Latency | ~0 |
| Video Resolution Support | 1080p up to 230 ft, 4K up to 130 ft |
| Receiver Unit Weight | 0.49 lbs |
| Transmitter Unit Weight | 0.51 lbs |
| Side A Connector 2 | (2) 3.5mm (Female), HDMI (Female), USB A (Female) |
| Side B Connector 2 | (2) 3.5mm (Female), HDMI (Female), (2) USB A (Female) |
| Material | Aluminium & Iron |
| Technology | Cat5/5e, Cat6, HDBaseT, HDMI, IR, USB 2.0 High Speed |
| Certifications | CE, FCC, RoHS, REACH, UL, cUL |
| Audio Support | Uncompressed LPCM, DTS-HD, Dolby TrueHD |
|---|---|
| Power Supply Output | 12V, 1A |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
| HDMI Specification | 1.4 |
| IR Remote Extension Support | Yes |
| Consumer Electronics Control (CEC) Supported | Yes |
| Max Supported Color Depth | 24-bit True Color |
| Signal Range | 230 ft |
| Receiver Unit Dimensions | 3.72 x 3.86 x 1.01 in |
| Transmitter Unit Dimensions | 3.72 x 3.86 x 1.01 in |
| Side A Connector 1 | RJ45 (Female) |
| Side B Connector 1 | RJ45 (Female) |
| Recommended Category Cable | Cat5/6 cables |
| Connector Plating | Nickel |
| External Power Supply Plug(s) | AS/NZS 3112 Australia, BS 1363 UK, CEE 7/16 Schuko, NEMA 1-15P North America |
