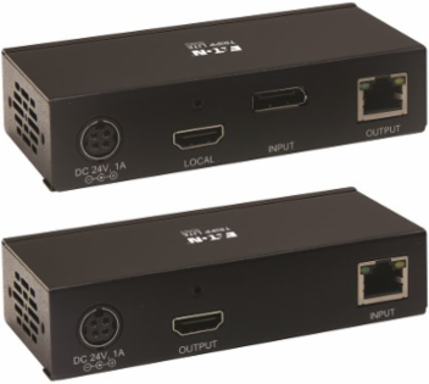

Tripp Lite B127A1A1BDBH DisplayPort to HDMI over Cat6 Extender Kit, KVM Support, 4K 60Hz, 4:4:4, USB, PoC, HDCP 2.2, 230 ft., TAA
- MPN: B127A1A1BDBH
- UPC: 037332258656
- PPN: TRP-B127A-1A1-BDBH
CAD
$459.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
DisplayPort to HDMI over Cat6 Extender Kit, KVM Support, 4K 60Hz, 4:4:4, USB, PoC, HDCP 2.2, 230 ft., TAA
Features

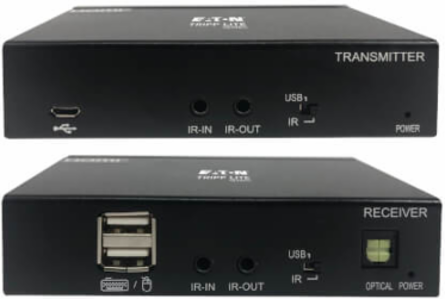

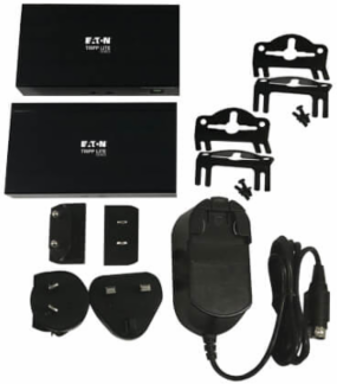

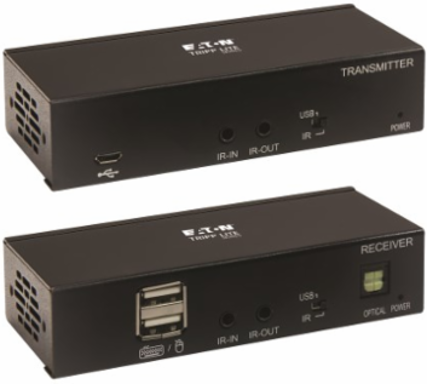

- Transmitter and receiver units included
- External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A); includes 4 international plug adapters (North America, Europe, U.K. and Australia)
- Mounting hardware included
Documentation & Downloads
Specifications
Dimensions
| Transmitter Unit Dimensions | 2.7 x 11.5 x 6.24 in |
|---|
| Receiver Unit Dimensions | 2.7 x 11.5 x 6.24 in |
|---|
Material
| Material | Metal |
|---|---|
| Form Factor | Box; Wall-mount |
| Color | Black |
|---|
Compliance
| Product Warranty | 1-year limited warranty |
|---|
Reference
| Product Type | Extender Kit |
|---|
| Recommended Cabling | Solid Wire Cat6 |
|---|
Performance
| Max Supported Video Resolution | 3840 x 2160 (4K @ 60Hz) |
|---|---|
| 3D Video Supported | Yes |
| Max Supported Color Depth | 36-bit Deep Color |
| USB Specification | USB 1.1 (up to 12 Mbps) |
| Audio Specification | Pass-through audio (LPCM 2.0/5.1/7.1) |
| HDCP Specification | 1.4; 2.2 |

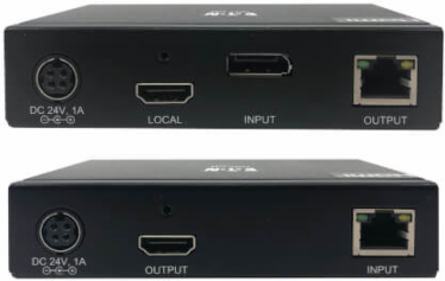

| Video Input | DisplayPort (Female) |
| Number of Monitors Supported | 2 |
| AC Power Adapter Output | 24V / 1A |
| Receiver Power Source | AC Adapter (Included); Power Over Cable |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| HDR Support | No |
|---|---|
| Chroma Subsampling | 4:4:4 |
| Transmission Distance | 230 ft; 400 ft with B127A-010-H signal booster |
| Audio Output | Toslink; HDMI |
| DisplayPort Specification | 1.2a |
| Technology | HDMI; Cat6; PoC |
| Video Output | HDMI (Female) |
| AC Power Adapter Input | 100-240V / 50/60Hz / 0.6A |
| Power Source | Transmitter or Receiver (Included) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-85% non-condensing |
