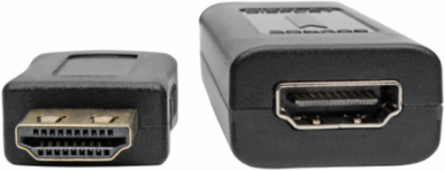

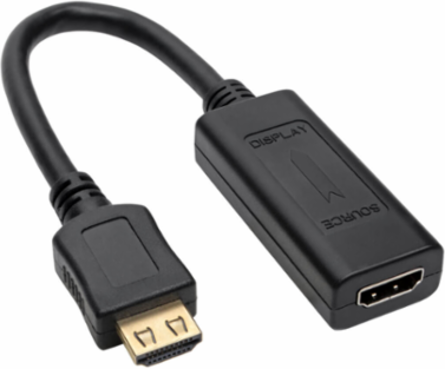

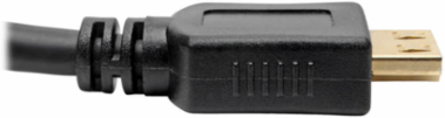

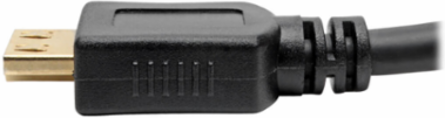

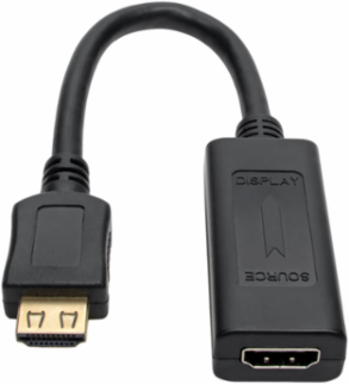

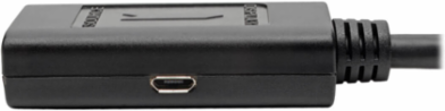

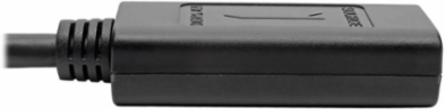

Tripp Lite B123-001 HDMI Signal Booster 1 ft, 1920 x 1200 @ 24Hz, Extends 150 ft, TAA Compliant
- MPN: B123-001
- UPC: 037332141057
- PPN: TRP-B123-001
CAD
$39.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDMI Signal Booster 1 ft, 1920 x 1200 @ 24Hz, Extends 150 ft, TAA Compliant
Features
- Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150 ft. from the source
- When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD
- 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
- Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
- No external power required in most installations
- Built-in HDMI cable features a latching connector for a more secure connection
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
Documentation & Downloads
Specifications
Additional
- Signal Type
- HDMI
- Supported Resolution Ranges (ft)
- Max 1600 x 1200 - 150 ft, Max 1080P - 150 ft, Max 1080i - 150 ft, Max 720P - 150 ft, Max 1440 x 900 - 150 ft, Max 1024 x 768 - 150 ft, Max 800 x 600 - 150 ft, Max 640 x 480 - 150 ft, Max 480P - 155 ft, Max 480i - 155 ft
- Connector Type Side A
- HDMI Male
- Cable Wiring
- 24 AWG (recommended for extension over 75 ft and 3D signals over 50 ft)
- Maximum Extension Distance
- 150 ft
- Color
- Black
Supported ResolutionUp to 1600 x 1200
Audio SupportDTS-HD, Dolby True HD, 7.1 Channel Surround Sound
Connector Type Side BHDMI Female
Cable Length1 ft
Warranty3-year limited warranty
ComplianceTAA, HDCP
