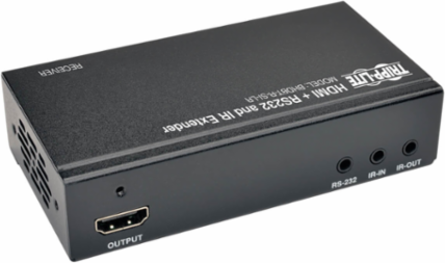

Tripp Lite BHDBT-R-SI-LR HDBaseT HDMI Extender Receiver, 4K x 2K @ 30Hz, 328 ft. Range

MPN: BHDBT-R-SI-LR
UPC: 037332187024
PPN: TRP-BHDBT-R-SI-LR

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$241.16/ EA

Loading add to cart quantity...

Description

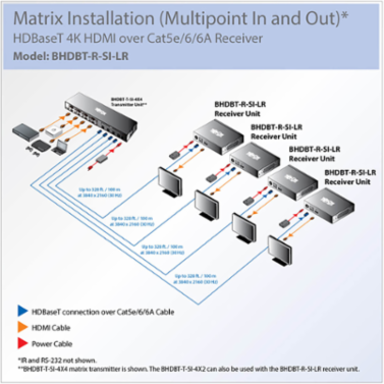

Works with a Tripp Lite HDBaseT matrix transmitter to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals over a Cat5e/6/6a cable up to 328 ft. to a projector, monitor or television.

Features

Extends both a 4096 x 2160 and 3840 x 2160 (4K x 2K) @ 30Hz signal up to 328 ft. (100 m)
Extends a 1080p @ 60 Hz signal up to 328 ft. (100 m)
Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
Mounts easily to wall, rack or pole
Plug and play—no software or drivers to install
1-year limited warranty

Specifications

Maximum Range: 328 ft (100 m)

IR Remote Frequency: 39 KHz

Input Power: 100-240V, 50/60Hz, 0.5A

Unit Dimensions: 1.1 x 4.5 x 2.5 in

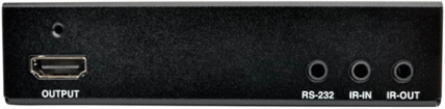

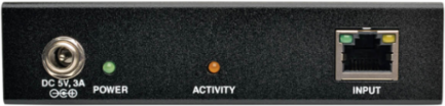

Connector Types: 1 HDMI (female), 1 RJ45 (female)

Operating Temperature Range: 0 to 40 °C (32 to 104 °F)

Relative Humidity: 20 to 90%

Audio Support: 7.1-channel surround, DTS-HD, Dolby TrueHD

Approvals: CE, FCC, RoHS, REACH, TAA

Warranty: 1-year limited

Resolution Support4096 x 2160, 3840 x 2160 @ 30Hz, 1920 x 1080 @ 60Hz

RS-232 Baud Rate115 Kbps full-duplex

Output Power5V, 3A

Unit Weight0.55 lbs

Mounting OptionsWall, rack, pole

Storage Temperature Range-20 to 60 °C (-4 to 140 °F)

TechnologyHDBaseT; HDMI; Serial (RS232); IR

Video Features36-bit Deep Color, CEC pass-through, 3D video, EDID, HDCP

ColorBlack
