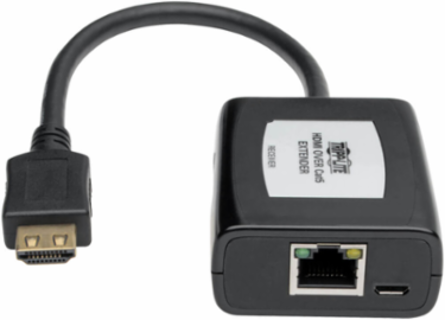

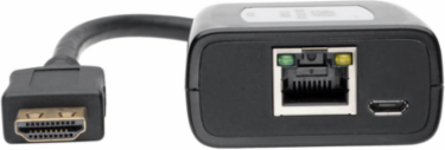

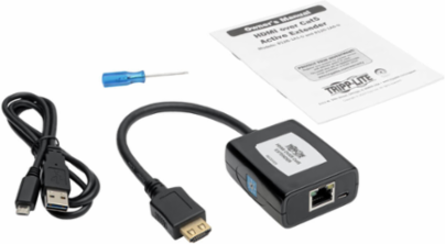

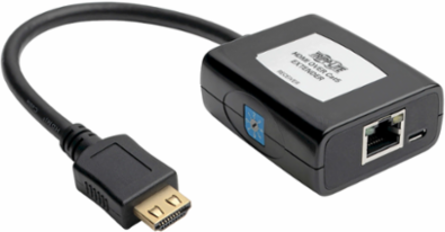

Tripp Lite B126-1A0-U HDMI over Cat5/6 Extender, 125 ft Signal Range, 1080p Resolution
- MPN: B126-1A0-U
- UPC: 037332190253
- PPN: TRP-B126-1A0-U
CAD
$161.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Works with Tripp Lite’s B126-Series transmitters to extend an HDMI audio/video signal via Cat5e/6 cable to an HDMI display up to 125 ft. Ideal for digital signs, schools, retail settings and trade show presentations.
Features
- Supports high-definition video resolutions up to 1080p (@ 60 Hz)
- Supports stereo audio and HDCP
- Works with all operating systems and HDMI sources
- Built-in cable includes latching HDMI connector for a more secure connection
- Plug and play—no software, drivers or external power supply

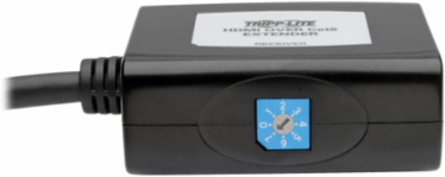

- Built-in equalization control lets you adjust monitor image
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Max Supported Video Resolution
- 1080p @ 60 Hz
- 3D Video Supported
- Yes
- Audio Specification
- Stereo
- Storage Temperature Range
- -4 to 176 F (-20 to 80 C)
- Product Length
- 8.4 in
- Unit Weight
- 0.09 lbs
- Connector Type Side B
- HDMI (Male)
- Material
- PC
- Bus Powered
- Yes
- Certifications
- CE, FCC, RoHS, REACH
- Recommended Category Cable
- Cat5/Cat5e/Cat6
- Ports
- 1
Signal Range125 ft
Max Supported Color Depth24-bit True Color
Operating Temperature Range14 to 167 F (-10 to 75 C)
Relative Humidity0% to 85%, Non-Condensing
Unit Dimensions0.9 x 2.4 x 2 in
Connector Type Side AMicro-USB B (Female), RJ45 (Female)
Connector PlatingGold
ColorBlack
TechnologyHDMI
Product Warranty Period (Worldwide)1-year limited warranty
LED IndicatorsGreen (Power), Orange (Activity)
RackmountableNo
