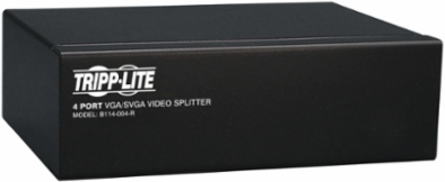

Tripp Lite B114-004-R 4-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/4xF)
Tripp Lite B114-004-R 4-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/4xF)
- MPN: B114-004-R
- UPC: 037332014276
- PPN: TRP-B114-004-R
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$62.41/ EA
Description
4-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/4xF)
Features
- Simultaneously displays video on up to 4 VGA/SVGA monitors
- A built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source
- The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors
- 350Mhz bandwidth support
- 3-year limited warranty
Specifications
Features & Specifications
- Max Supported Video Resolution
- 2048 x 1536 @60Hz
- EDID Compatible
- Yes
Driver RequiredNo
TechnologyVGA/SVGA
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Port Expansion
- Max Distance (Between any 2 Units)
- 246ft (75m)
Max Number of Ports (Entire Chain)64

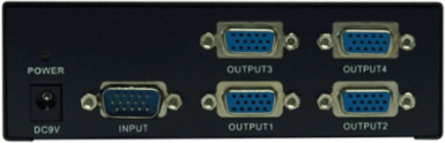

Connections
- Ports
- 4
- Side B - Connector 1
- (4) HD15 (FEMALE)
Side A - Connector 1HD15 (MALE)
Connector PlatingNickel
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 2.40 x 5.70 x 9.90
- Unit Dimensions (hwd / in.)
- 1.7 x 5.2 x 3.7
- Unit Weight (lbs.)
- 1.00
Material of ConstructionIron
Shipping Weight (lbs.)1.60
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- Green (Power)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 9V / 1A
- External Power Supply DC Barrel Connector Specs
- OD: 5.5 x 2.1 x 12mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- FCC; UL; cUL; RoHS
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.4A
External Power Supply Cord Length (ft.)5
External Power Supply Plug(s)NEMA 1-15P North America
Communications
- Signal Range (ft.)
- 210
Environmental
- Operating Temperature Range
- 32 to 122 F (0 to 50 C)
- Relative Humidity
- 0% to 80% RH, Non-Condensing
- Power Consumption (Watts)
- 1.8
Storage Temperature Range-4 to 140 F (-20 to 60 C)
BTUs6.1 BTU/Hr
Overview
- UPC Code
- 037332014276
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
