Documentation & Downloads

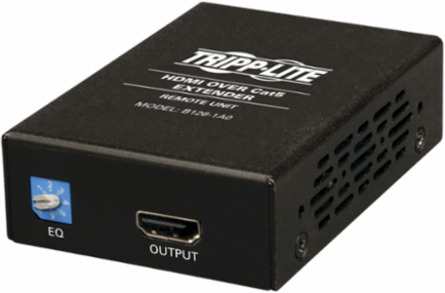

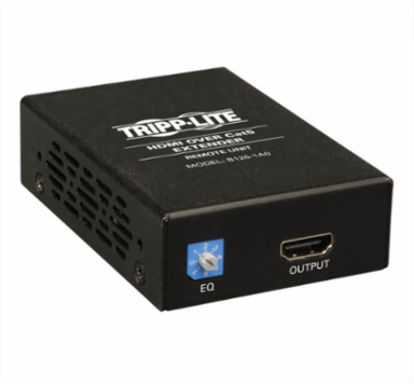

Tripp Lite B126-1A0 HDMI over Cat5e/6 Extender, 150 ft Signal Range, 1080p Resolution, TAA Compliant
- MPN: B126-1A0
- UPC: 037332157485
- PPN: TRP-B126-1A0
CAD
$334.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Works with Tripp Lite’s B126-Series transmitters to extend an HDMI signal via Cat5e/6 cable to a projector, monitor or television. Ideal for digital signs, schools and trade show presentations.
Features

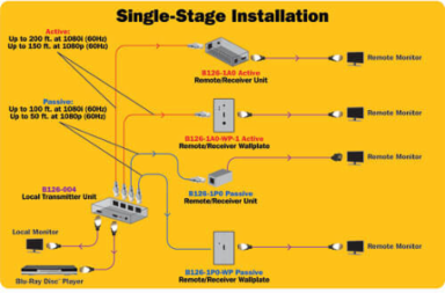

- Works in tandem with B126-002 or B126-004 transmitter unit
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play—no software or drivers to install
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Supported Video Resolution
- 1080p @ 60Hz
- Extended Signal Range with Repeaters
- 700 ft (1080i), 500 ft (1080p), 400 ft (3D)
- Max Supported Color Depth
- 24-bit True Color
- HDCP Specification
- 1.4
- Storage Temperature Range
- -20 to 80 C (-4 to 176 F)
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
- Power Supply Output
- 5V, 2A
- Dimensions (HxWxD)
- 1 x 2.5 x 3.6 in (2.54 x 6.35 x 9.14 cm)

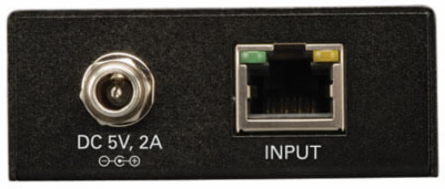

- Connector - Side A
- RJ45 (Female)
- Material
- SECC
- Color
- Black
- Certifications
- FCC, RoHS, REACH, UL, cUL
- Compatibility
- Works with B126-002 or B126-004 transmitters
Signal Range200 ft (1080i), 150 ft (1080p), 125 ft (3D)
Audio Specification7.1 Channel Surround Sound (Multi-Channel or PCM)
HDMI Specification1.4
Operating Temperature Range-10 to 75 C (14 to 167 F)
Relative Humidity0% to 85%, Non-Condensing
Power Supply Input100-240V, 50/60 Hz, 0.5A
Power Supply Cord Length5 ft (1.37 m)
Weight0.19 lbs (0.09 kg)
Connector - Side BHDMI (Female)
Connector PlatingNickel
RackmountableYes
ComplianceTAA Compliant
