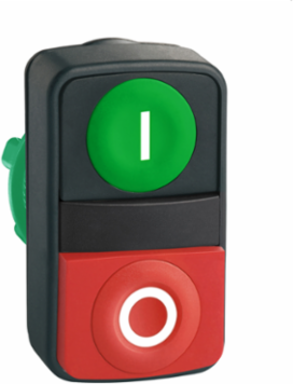

Schneider Electric ZB5AL7340 Harmony XB5 Push Button Head, 22 mm, IP66, Spring Return, 1 Green & 1 Red
- MPN: ZB5AL7340
- PPN: SCH-ZB5AL7340
CAD
$41.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This double head has 1 green and 1 red button and provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- spring return
- Product Or Component Type
- head for double-headed push-button
- Operator Profile
- 1 flush - 1 projecting push-buttons
- Sale Per Indivisible Quantity
- 1
- Device Short Name
- ZB5
Mounting Diameter22 mm
Operators Descriptiongreen unmarked - red unmarked
Shape Of Signaling Unit Headrectangular
Head Typestandard
Bezel Materialdark grey plastic
Complementary
- Electrical Composition Code
- C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
- Net Weight
- 0.023 kg
- Device Presentation
- basic element
- Mechanical Durability
- 1000000 cycles
- Cad Overall Width
- 30 mm
Colour Of Markingwhite marking when green, red or black caps || black marking when white caps
Cad Overall Height50 mm
Operator Profilegreen flush, unmarked || red projecting, unmarked
Station NameXALD 1 cut-out
Cad Overall Depth35 mm
Environment
- Product Certifications
- BV || DNV || CSA || GL || LROS (Lloyds register of shipping) || UL listed
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69K IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 60536
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsEN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
