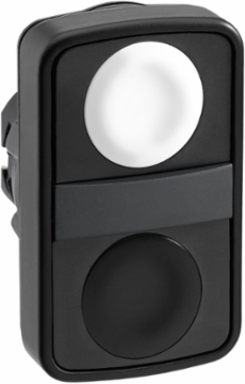

Schneider Electric ZB5AA7120 Head for double headed push button, Harmony XB5, 2 rectangular white/black flush, 22mm, spring return, unmarked

Head for double headed push button, Harmony XB5, 2 rectangular white/black flush, 22mm, spring return, unmarked
  • MPN: ZB5AA7120
  • PPN: SCH-ZB5AA7120

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$38.95/ EA

Description

This double head provides a versatile interface for controlling your machines, it has 1 white and 1 black buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.

Specifications

Environment

Product Certifications
BV || CSA || LROS (Lloyds register of shipping) || GL || DNV || UL listed
Ambient Air Temperature For Operation
-25-70 °C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP69K IEC 60529
Ambient Air Temperature For Storage
-40-70 °C
Electrical Shock Protection Class
class II IEC 60536
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Protective TreatmentTH

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1710010EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
Net Weight
0.023 kg
Device Presentation
basic element
Mechanical Durability
1000000 cycles
Cad Overall Width
30 mm
Colour Of Markingwhite marking when green, red or black caps || black marking when white caps
Cad Overall Height50 mm
Operator Profileblack flush, unmarked || white flush, unmarked
Station NameXALD 1 cut-out
Cad Overall Depth30 mm

Specifications

Range Of Product
Harmony XB5
Type Of Operator
spring return
Product Or Component Type
head for double-headed push-button
Operator Profile
2 flush push-buttons
Sale Per Indivisible Quantity
1
Device Short Name
ZB5
Mounting Diameter22 mm
Operators Descriptionwhite unmarked - black unmarked
Shape Of Signaling Unit Headrectangular
Head Typestandard
Bezel Materialdark grey plastic
