Schneider Electric ZB4BW7A1715 Harmony XB4 Illuminated Push Button Head Ø22 mm, IP66, Spring Return
Schneider Electric ZB4BW7A1715 Harmony XB4 Illuminated Push Button Head Ø22 mm, IP66, Spring Return
- MPN: ZB4BW7A1715
- PPN: SCH-ZB4BW7A1715
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$63.55/ EA
Description

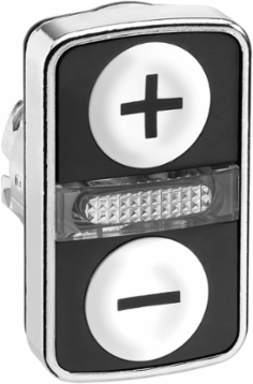

This Harmony XB4, illuminated double head has 2 white buttons and 1 central white pilot light, operates with a spring return / impulse mechanism. It is marked with "+" and "-"symbols. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its pilot light and illuminated head with clear colors, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Specifications
Environment
- Product Certifications
- GL || DNV || LROS (Lloyds register of shipping) || UL listed || BV || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-1
- Electrical Shock Protection Class
- class I IEC 61140
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
Ik Degree Of ProtectionIK06 conforming to IEC 50102
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Operator Profile
- white flush, - black) || white flush, + black)
- Electrical Composition Code
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Colour Of Marking
- white marking when green, red or black caps || black marking when white caps
- Net Weight
- 0.056 kg
- Device Presentation
- basic sub-assemblies
Mechanical Durability1000000 cycles
Cad Overall Width30 mm
Cad Overall Depth30 mm
Cad Overall Height50 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Specifications
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- chromium plated metal
- Type Of Operator
- spring return
- Product Or Component Type
- head for illuminated double-headed push-button
- Product Compatibility
- integral LED
- Operator Profile
- 2 flush push-buttons - 1 central pilot light
Range Of ProductHarmony XB4
Mounting Diameter22 mm
Operators Descriptionwhite ''+'' - white ''-''
Shape Of Signaling Unit Headrectangular
Device Short NameZB4
Head Typestandard
