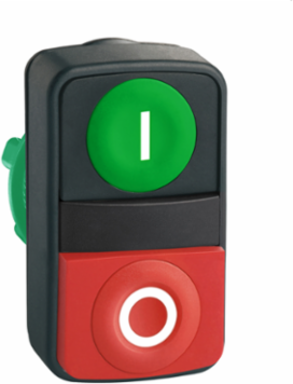

Schneider Electric ZB5AW7L3740 Harmony XB5 Illuminated Push Button Head, 22mm, IP66, 1 Green Flush & 1 Red Projecting

MPN: ZB5AW7L3740
PPN: SCH-ZB5AW7L3740

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$56.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This double head has 1 red, 1 green button and 1 central white pilot light, it provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its pilot light, clear colors. It is also distinguishable by touch due to flush and projecting elements. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France

Physical Attributes

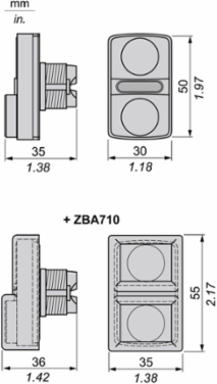

Cad Overall Depth	35 mm
