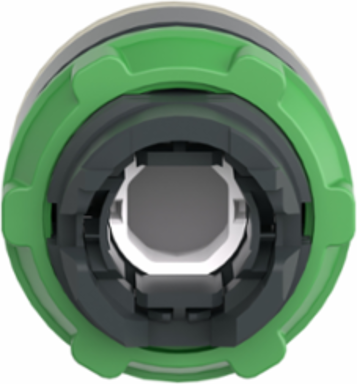

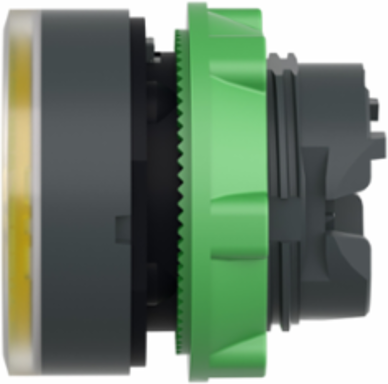

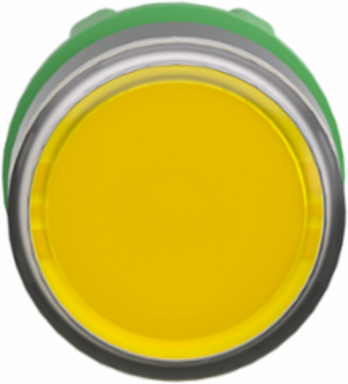

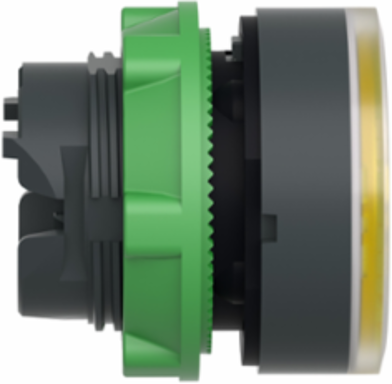

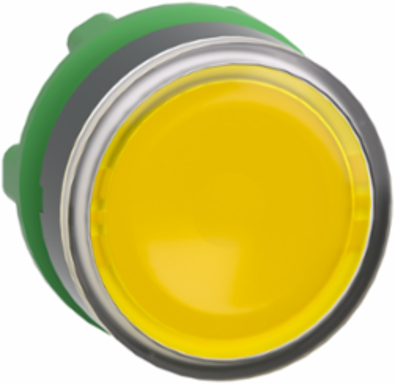

Schneider Electric ZB5AW383 Head for illuminated push button, Harmony XB5, yellow flush, 22mm, universal LED, spring return, plain, unmarked

Head for illuminated push button, Harmony XB5, yellow flush, 22mm, universal LED, spring return, plain, unmarked
Head for illuminated push button, Harmony XB5, yellow flush, 22mm, universal LED, spring return, plain, unmarked
Head for illuminated push button, Harmony XB5, yellow flush, 22mm, universal LED, spring return, plain, unmarked
Head for illuminated push button, Harmony XB5, yellow flush, 22mm, universal LED, spring return, plain, unmarked
Head for illuminated push button, Harmony XB5, yellow flush, 22mm, universal LED, spring return, plain, unmarked
  • MPN: ZB5AW383
  • PPN: SCH-ZB5AW383

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Looking to buy a large quantity?

    To view product inventory

    CAD$12.86/ EA

    Description

    This Harmony XB5, plain lens illuminated yellow flush head for integral LED operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

    Specifications

    Environment

    Product Certifications
    GL || BV || DNV || LROS (Lloyds register of shipping) || UL listed || CSA
    Ambient Air Temperature For Operation
    -40-70 °C
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Ip Degree Of Protection
    IP66 IEC 60529 || IP67 || IP69 || IP69K
    Overvoltage Category
    class II IEC 60536
    Protective Treatment
    TC
    Ik Degree Of ProtectionIK05 conforming to EN 50102
    StandardsCSA C22.2 No 14 || GB 14048.5 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-1
    Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
    Ambient Air Temperature For Storage-40-70 °C
    Nema Degree Of ProtectionNEMA 13 || NEMA 4X

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1710010EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Circularity Profile
    ENVEOLI1710010EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationX
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Important Information

    Important Message
    A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

    Complementary

    Main Group
    illum push-button
    Net Weight
    0.017 kg
    Device Presentation
    basic sub-assemblies
    Cap/Operator Or Lens Colour
    yellow
    Marking
    unmarked
    Cad Overall Width
    29 mm
    Group Of Product
    flush push integral LED
    Electrical Composition CodeM1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    Cad Overall Height29 mm
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Mechanical Durability10000000 cycles
    Station NameXALD 1...5 cut-outs || XALK 2...5 cut-outs
    Cad Overall Depth30 mm

    Specifications

    Operator Additional Information
    with plain lens
    Mounting Diameter
    22 mm
    Product Or Component Type
    head for illuminated push-button
    Sale Per Indivisible Quantity
    1
    Operator Profile
    yellow flush, unmarked
    Device Short Name
    ZB5
    Range Of ProductHarmony XB5
    Type Of Operatorspring return
    Shape Of Signaling Unit Headround
    Bezel Materialdark grey plastic
    Product Compatibilityuniversal LED
