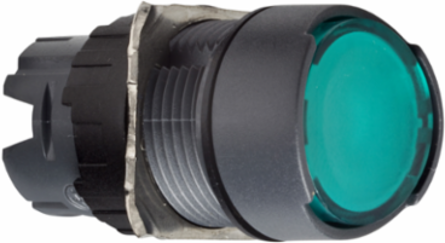

Schneider Electric ZB6AF3 Harmony XB6 16mm Green Flush Illuminated Push Button with LED
- MPN: ZB6AF3
- PPN: SCH-ZB6AF3
CAD
$18.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony ZB6AF3 is a green flush illuminated push button head, latching for integral LED. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Documentation & Downloads
Specifications
Key Specifications
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- plastic
- Mounting Diameter
- 16 mm
- Product Or Component Type
- head for illuminated push-button
- Product Compatibility
- integral LED
Range Of ProductHarmony XB6
Operator Profilegreen flush, unmarked
Type Of Operatorlatching
Shape Of Signaling Unit Headround
Device Short NameZB6
Complementary
- Mechanical Durability
- 300000 cycles
- Cad Overall Depth
- 33 mm
- Cad Overall Height
- 18 mm
Cad Overall Width18 mm
Net Weight0.016 kg
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Environment
- Product Certifications
- CSA || GOST || UL || CCC
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || UL 508 || JIS C 852 || JIS C8201-1
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP65 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
