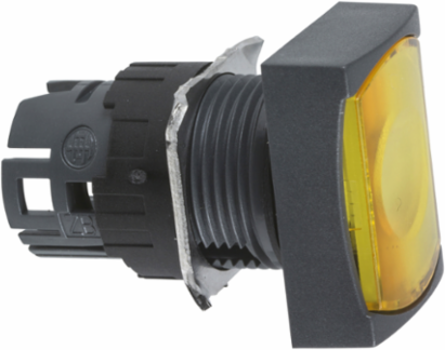

Schneider Electric ZB6DW5 Harmony XB6 16mm Yellow Rectangular Flush Illuminated Push Button Head

Harmony XB6 16mm Yellow Rectangular Flush Illuminated Push Button Head
  • MPN: ZB6DW5
  • PPN: SCH-ZB6DW5

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$18.52/ EA

    Description

    This Harmony ZB6DW5 is a yellow rectangular flush illuminated push button head, spring return, 12V to 24V. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

    Specifications

    Environment

    Product Certifications
    GOST || CSA || UL || CCC
    Ambient Air Temperature For Storage
    -40-70 °C
    Nema Degree Of Protection
    NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94 || NEMA 13 CSA C22.2 No 94
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Protective Treatment
    TC
    Ambient Air Temperature For Operation-25-70 °C
    StandardsEN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || JIS C 852 || UL 508 || JIS C8201-1
    Electrical Shock Protection Classclass II IEC 61140
    Vibration Resistance+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
    Ip Degree Of ProtectionIP65 IEC 60529

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1710010EN
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileENVEOLI1710010EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Complementary

    Cad Overall Width
    24 mm
    Net Weight
    0.016 kg
    Cad Overall Depth33 mm
    Cad Overall Height18 mm

    Specifications

    Sale Per Indivisible Quantity
    1
    Bezel Material
    plastic
    Mounting Diameter
    16 mm
    Product Or Component Type
    head for illuminated push-button
    Product Compatibility
    integral LED
    Range Of ProductHarmony XB6
    Operator Profileyellow flush, unmarked
    Type Of Operatorspring return
    Shape Of Signaling Unit Headrectangular
    Device Short NameZB6
