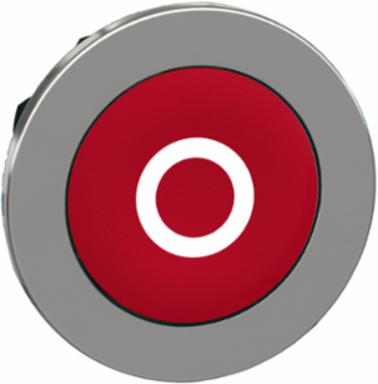

Schneider Electric ZB4FA432 Harmony XB4 Push Button Head, 30.5 mm, IP69 Protection, Red Flush Marked "O"
Schneider Electric ZB4FA432 Harmony XB4 Push Button Head, 30.5 mm, IP69 Protection, Red Flush Marked "O"
- MPN: ZB4FA432
- PPN: SCH-ZB4FA432
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$29.57/ EA
Description
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- UL listed || CSA || CCC || EAC
- Ambient Air Temperature For Operation
- -40-70 °C
- Overvoltage Category
- class I IEC 60536
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Protective Treatment
- TH
Ik Degree Of ProtectionIK06 conforming to IEC 50102
Ambient Air Temperature For Storage-40-70 °C
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Mechanical Durability
- 10000000 cycles
- Cad Overall Width
- 36.6 mm
- Cad Overall Height
- 36.6 mm
Electrical Composition CodeC1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Cad Overall Depth31 mm
Device Presentationbasic element
Specifications
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- chromium plated metal
- Mounting Diameter
- 30.5 mm
- Product Or Component Type
- head for non-illuminated push-button
- Device Short Name
- ZB4F
Range Of ProductHarmony XB4
Operator Profilered flush, O white)
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Head Typebuilt-in-flush
