Schneider Electric ZB5AA433 Harmony XB5 Red Flush Pushbutton 22 mm Spring Return, IP66/IP67/IP69K
- MPN: ZB5AA433
- PPN: SCH-ZB5AA433
CAD
$20.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

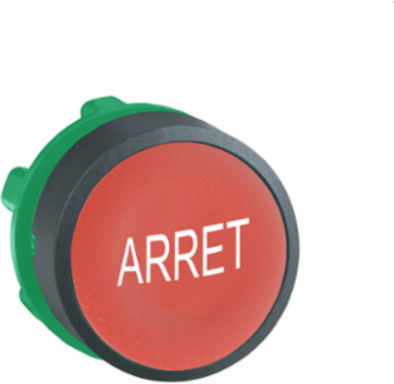

This Harmony XB5, flush red button head operates with a spring return mechanism. It is marked with a "ARRET" lettering. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Harmony XB5 |
|---|---|
| Type Of Operator | spring return |
| Shape Of Signaling Unit Head | round |
| Sale Per Indivisible Quantity | 1 |
| Operator Profile | red flush, ARRET white) |
| Mounting Diameter | 22 mm |
|---|---|
| Product Or Component Type | head for non-illuminated push-button |
| Head Type | standard |
| Bezel Material | dark grey plastic |
| Device Short Name | ZB5 |
Complementary
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting |
|---|---|
| Cad Overall Height | 29 mm |
| Mechanical Durability | 10000000 cycles |
| Cad Overall Width | 29 mm |
| Net Weight | 0.018 kg |
|---|---|
| Device Presentation | basic element |
| Station Name | XALD 1...5 cut-outs || XALK 2...5 cut-outs |
| Cad Overall Depth | 28 mm |
Environment
| Product Certifications | DNV || GL || UL listed || CSA || BV || LROS (Lloyds register of shipping) |
|---|---|
| Ambient Air Temperature For Operation | -40-70 °C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Ik Degree Of Protection | IK03 conforming to IEC 50102 |
|---|---|
| Standards | IEC 60947-5-4 || IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Overvoltage Category | class II IEC 60536 |
| Protective Treatment | TH |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1710010EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI1710010EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
