Schneider Electric ZB5AV003 Head for pilot light, Harmony XB5, plastic, 5 colour, 22mm, universal LED, plain lens
Schneider Electric ZB5AV003 Head for pilot light, Harmony XB5, plastic, 5 colour, 22mm, universal LED, plain lens
- MPN: ZB5AV003
- PPN: SCH-ZB5AV003
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$25.49/ EA
Description

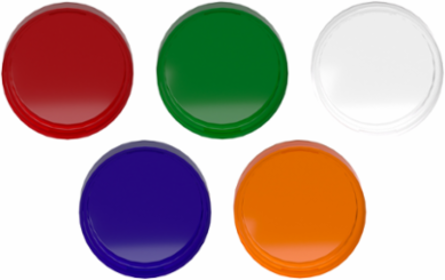

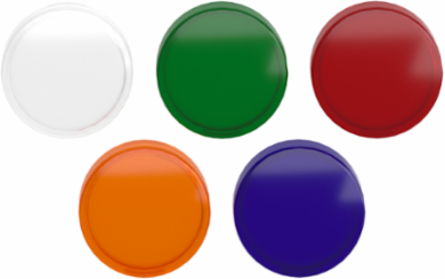

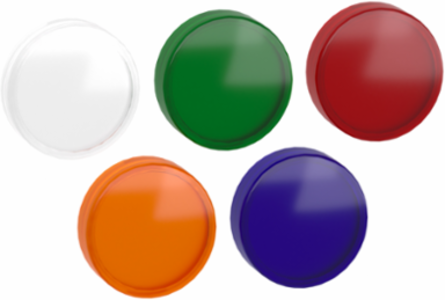

This Harmony XB5, plain lens head for pilot light with integral LED provides 5 colors of len: white, green, red, orange, blue. This heads set for integral LED pilot light comes with 5 different colors for multi-purposes use of machine operation. They are designed to last without maintenance for a bright indication of process and are clearly distinguishable visually at a distance thanks to clear colors of lens, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications
Environment
- Ik Degree Of Protection
- IK05 conforming to IEC 50102
- Standards
- IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TH
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Complementary
- Electrical Composition Code
- P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
- Cad Overall Height
- 29 mm
- Station Name
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Depth
- 31 mm
Net Weight0.017 kg
Device Presentationbasic element
Cad Overall Width29 mm
Specifications
- Operator Additional Information
- with plain lens
- Mounting Diameter
- 22 mm
- Shape Of Signaling Unit Head
- round
- Head Type
- standard
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
Range Of ProductHarmony XB5
Product Or Component Typehead for pilot light
Cap/Operator Or Lens Colour5 colours choice
Sale Per Indivisible Quantity1
Product Compatibilityuniversal LED
