Schneider Electric ZB4BV003 Harmony XB4 Pilot Light Head, 22mm, 5 Color Options, IP66 Rated
- MPN: ZB4BV003
- PPN: SCH-ZB4BV003
CAD
$25.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

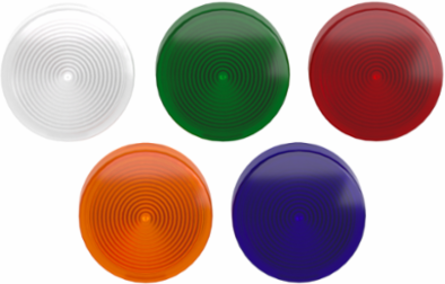

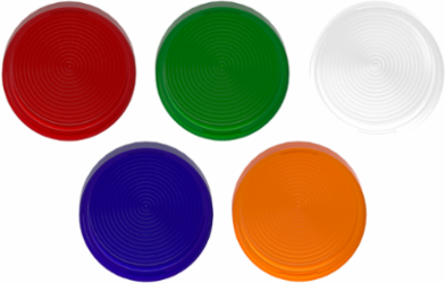

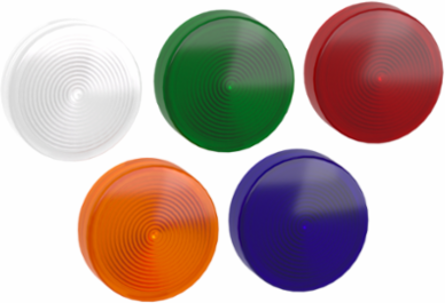

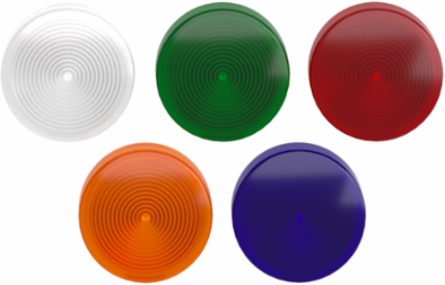

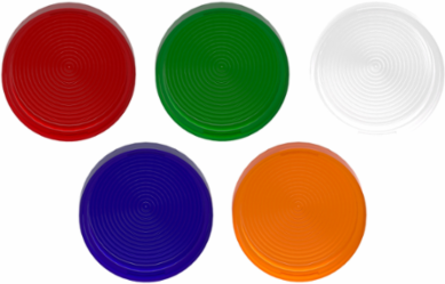

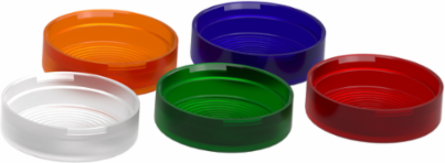

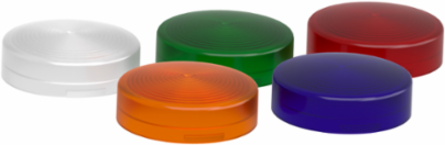

This Harmony XB4, plain lens head for pilot light with integral LED provides 5 colors of len: white, green, red, orange, blue. This heads set for integral LED pilot light comes with 5 different colors for multi-purposes use of machine operation. It is designed to last without maintenance for a bright indication of process and is clearly distinguishable visually at a distance thanks to clear colors of lens, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- with plain lens
- Mounting Diameter
- 22 mm
- Shape Of Signaling Unit Head
- round
- Head Type
- standard
- Bezel Material
- chromium plated metal
- Device Short Name
- ZB4
Range Of ProductHarmony XB4
Product Or Component Typehead for pilot light
Cap/Operator Or Lens Colour5 colours choice
Sale Per Indivisible Quantity1
Product Compatibilityuniversal LED
Complementary
- Electrical Composition Code
- P1 front mounting integral LED || P2 front mounting integral LED and transformer

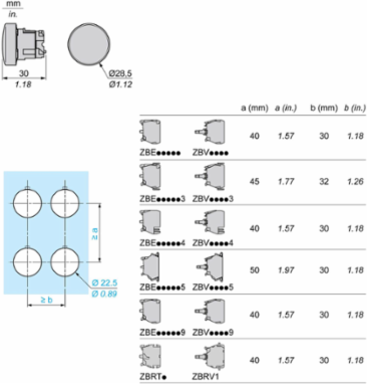

- Cad Overall Height
- 29 mm
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Depth
- 30 mm
Net Weight0.026 kg
Device Presentationbasic element
Cad Overall Width29 mm
Environment
- Ik Degree Of Protection
- IK06 conforming to IEC 50102
- Standards
- EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Categoryclass I IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2308026EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI2308026EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
