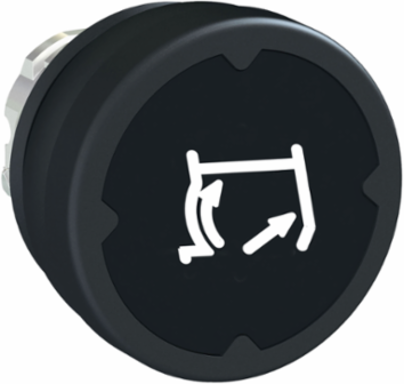

Schneider Electric ZB4BC28012RA Harmony XB4 Push Button Head, Black, 22 mm, IP66, 3,000,000 Cycles
- MPN: ZB4BC28012RA
- PPN: SCH-ZB4BC28012RA
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Crafted for durability and efficiency, the Harmony XB4 push button head by Schneider Electric is designed to thrive in harsh environments. With an impressive lifespan of up to 3,000,000 cycles, this 22 mm black push button head ensures reliable performance under demanding conditions. Rated IP66 for protection against dust and water, it is ideal for industrial applications where resilience is critical. This component is an essential addition to any automation and control system, providing both functionality and robustness.
Documentation & Downloads
Specifications
Additional
- Mechanical Durability
- 3,000,000 cycles
- Vibration Resistance
- 5 gn 2-500 Hz IEC 60068-2-6
- Type of Operator
- spring return
- CAD Overall Height
- 18.5 mm
- CAD Overall Depth
- 37 mm
- Operator Profile
- black flush, type H012 white
- Bezel Material
- chromium plated metal
- Marking Color
- white
- IK Degree of Protection
- IK06 IEC 62262
- NEMA Degree of Protection
- NEMA 4 UL 508, 12, 13
- Product Certifications
- UL, CSA, CE
- Ambient Air Temperature for Storage
- -40 to 85 °C
Shock Resistance30 gn 18 ms half sine wave acceleration IEC 60068-2-27
Resistance to High Pressure Washer90 Pa 82.5 °C
Mounting Diameter22 mm (0.87 in)
CAD Overall Width37 mm
Net Weight0.036 kg
Shape of Signaling Unit Headround
Colorblack
Electrical Shock Protection Classclass I IEC 61140
IP Degree of ProtectionIP66, IP69, IP69K IEC 60529
StandardsIEC 60947-1, IEC 60947-5-1, UL 508, CSA C22.2
Ambient Air Temperature for Operation-40 to 70 °C
Country of OriginFrance
