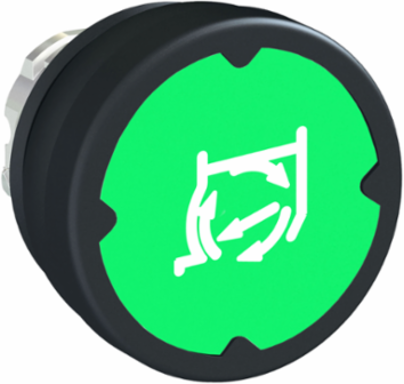

Schneider Electric ZB4BC38011RA Head for push button, Harmony XB4, pushbutton harsh environment, green, with marking legend rotated 90°
Schneider Electric ZB4BC38011RA Head for push button, Harmony XB4, pushbutton harsh environment, green, with marking legend rotated 90°
- MPN: ZB4BC38011RA
- PPN: SCH-ZB4BC38011RA
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$100.46/ EA
Description
Head for push button, Harmony XB4, pushbutton harsh environment, green, with marking legend rotated 90°
Specifications
Environment
- Product Certifications
- CE || CSA || UL
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- CSA C22.2 || IEC 60947-1 || UL 508 || IEC 60947-5-1
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69K || IP69
Ik Degree Of ProtectionIK06 conforming to IEC 62262
Ambient Air Temperature For Storage-40-85 °C
Nema Degree Of ProtectionNEMA 4 UL 508 || NEMA 13 || NEMA 12
Resistance To High Pressure Washer90 Pa 82.5 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Cap/Operator Or Lens Colour
- green
- Main Group
- harsh environment
- Mechanical Durability
- 3000000 cycles
- Type Of Operator
- spring return
- Colour Of Marking
- white
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Depth
- 37 mm
- Cad Overall Height
- 18.5 mm
Operator Additional Informationhorizontal mounting
Operator Profilegreen flush, type H011 white)
Markingtype H011
Electrical Composition CodeC1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Electrical Shock Protection Classclass I IEC 61140
Shape Of Signaling Unit Headround
Cad Overall Width37 mm
Net Weight0.036 kg
Group Of Productflush marked type H011
Key Specifications
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- chromium plated metal
- Product Or Component Type
- head for push-button
- Head Type
- standard
Range Of ProductHarmony XB4
Mounting Diameter22 mm
Device Short NameZB4
