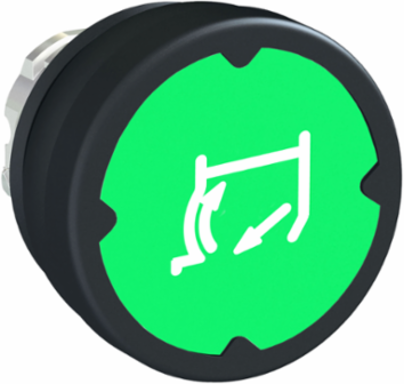

Schneider Electric ZB4BC38013RA Harmony XB4 Push Button Head Green, 22 mm, IP66, IK06
- MPN: ZB4BC38013RA
- PPN: SCH-ZB4BC38013RA
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric ZB4BC38013RA Harmony XB4 Push Button Head is engineered for exceptional performance in demanding environments, boasting a robust 22 mm design with a striking green finish that enhances visibility. With an impressive IP66 rating, this push button head ensures dust and water resistance, making it ideal for applications exposed to harsh conditions. Additionally, its IK06 rating provides strong protection against impact, ensuring reliable operation in rugged settings. This component is a vital addition for automation and control systems, supporting efficient operation while maintaining resilience in challenging environments.
Documentation & Downloads
Specifications
Additional
- Mechanical Durability
- 3,000,000 cycles
- Shock Resistance
- 30 gn 18 ms half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40 to 85 B0C
- Cad Overall Width
- 37 mm
- Cad Overall Depth
- 37 mm
- Head Type
- standard
- Operator Profile
- green flush, type H013 white
- IP Degree Of Protection
- IP66, IP69, IP69K IEC 60529
- IK Degree Of Protection
- IK06 IEC 62262
- Electrical Shock Protection Class
- Class I IEC 61140
- Product Certifications
- CE, CSA, UL
- Marking Color
- white
- Country of Origin
- France
Vibration Resistance5 gn 2-500 Hz IEC 60068-2-6
Ambient Air Temperature For Operation-40 to 70 B0C
Mounting Diameter22 mm (0.87 in)
Cad Overall Height18.5 mm
Operator Typespring return
Shape Of Signaling Unit Headround
Bezel Materialchromium plated metal
NEMA Degree Of ProtectionNEMA 4 UL 508, NEMA 12, NEMA 13
Resistance To High Pressure Washer90 Pa at 82.5 B0C
StandardsCSA C22.2, IEC 60947-1, IEC 60947-5-1, UL 508
Colorgreen
Net Weight0.036 kg
Environmental ComplianceRoHS, REACh free of SVHC, Toxic heavy metal free, Mercury free, China RoHS
