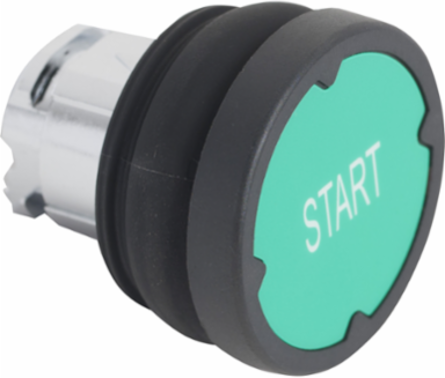

Schneider Electric ZB4BC38031 Harmony XB4 Push Button Head, Green, 22 mm, IP66, NEMA 4
- MPN: ZB4BC38031
- PPN: SCH-ZB4BC38031
CAD
$100.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for durability in demanding applications, the Schneider Electric Harmony XB4 Push Button Head features a vibrant green color and a robust 22 mm design, optimized for visibility and user interaction. With an IP66 rating, it ensures resistance against dust and powerful water jets, making it suitable for use in harsh environments while also complying with NEMA 4 standards. This push button head is an essential component for automation and control systems, providing reliability and efficiency in various industrial settings.
Documentation & Downloads
Specifications
Additional
- Mechanical Durability
- 10,000,000 cycles
- Vibration Resistance
- 5 gn, 2-500 Hz IEC 60068-2-6
- Ambient Air Temperature for Operation
- -40 to 70 C
- Mounting Diameter
- 22 mm (0.87 in)
- CAD Overall Height
- 18.5 mm (0.73 in)
- Type of Operator
- Spring return
- Operator Additional Information
- Vertical mounting
- Head Type
- Standard
- Bezel Material
- Chromium plated metal
- Cap/Operator or Lens Colour
- Green
- IP Degree of Protection
- IP66, IP67, IP69, IP69K IEC 60529
- Resistance to High Pressure Washer
- 90 Pa at 82.5 C
- Standards
- IEC 60947-5-1, IEC 60947-1, CSA C22.2, UL 508
- RoHS Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Product Or Component Type
- Head for push-button
- Main Group
- Harsh environment
- Group Of Product
- Flush marked type H031
- Colour of Marking
- White
- Warranty
- 18 months
Shock Resistance30 gn, 18 ms half sine wave acceleration IEC 60068-2-27
Electrical Shock Protection ClassClass I IEC 61140
Ambient Air Temperature for Storage-40 to 85 C
CAD Overall Width37 mm (1.46 in)
CAD Overall Depth37 mm (1.46 in)
Operator ProfileGreen flush, type H031 white
Shape of Signaling Unit HeadRound
Electrical Composition CodeC1, C2, C11, C15 (single/double front mounting variants)
ColorGreen
NEMA Degree of ProtectionNEMA 4, NEMA 12, NEMA 13 UL 508
IK Degree of ProtectionIK06 IEC 62262
Product CertificationsCE, CSA, UL
Environmental DisclosureENVPEP1808008EN
China RoHS RegulationX
Reach RegulationFree of SVHC above threshold
EU RoHS DirectivePro-active compliance (out of EU RoHS legal scope)
Country of OriginFrance
Device Short NameZB4
Circularity ProfileENVEOLI1808008EN
Marking TypeType H031
MarkingType H031
