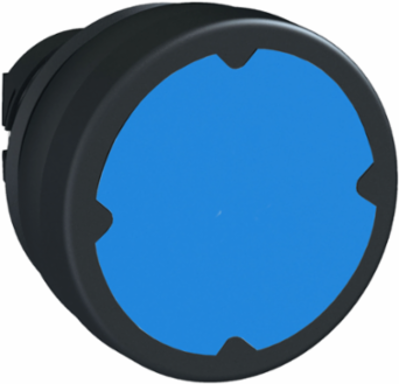

Harmony XB5 22mm Blue Push Button Head, IP66, Spring Return, Standard
Harmony XB5 22mm Blue Push Button Head, IP66, Spring Return, Standard
Schneider Electric

Schneider Electric ZB5AC680 Harmony XB5 22mm Blue Push Button Head, IP66, Spring Return, Standard

  • MPN: ZB5AC680
  • PPN: SCH-ZB5AC680
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $68.34

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This blue button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Chile, France

    Physical Attributes

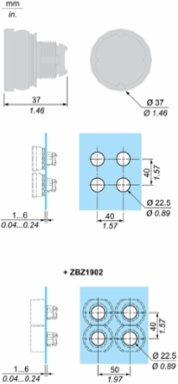

    Cad Overall Depth
    37 mm
    Cad Overall Width
    37 mm
    Cad Overall Height18.5 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Customizable
    0, no
    Operator Additional Information
    vertical mounting, horizontal mounting
    Certificate Agency
    UL, CE, CSA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.04385593469733482
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.2 kg CO2 eq., 0.17983079681533676
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2303008EN
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Bezel Material
    black plastic
    Device Short Name
    ZB5
    Group Of Product
    flush unmarked
    Main Group
    harsh environment
    Mechanical Durability
    10000000 cycles
    Operator Profile
    blue flush, unmarked
    Product Or Component Type
    head for push-button
    Resistance To High Pressure Washer
    90 Pa 82.5 °C
    Sale Per Indivisible Quantity
    1
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable Packaging
    No
    Type Of Operator
    spring return
    Operator Add Information
    vertical mountinghorizontal mounting
    Pep Code
    ENVPEP2303008EN
    Pep Verification Date
    2024-03-24
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; APAC
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; APAC
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Composition CodeC1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting
    Operator Profile 1 Cap Operator Or Lens Colorblue
    Carbon Footprint Of The Distribution Phase [A4]0.008472296095305141, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.006397182202151762, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeOut
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility CodeZB5
    Electrical Shock Protection Classclass II conforming to IEC 61140
    Head Typestandard
    Markingunmarked
    Mounting Diameter22 mm
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductHarmony XB5
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Operator Profile 1 Markingunmarked
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC
    Cap/Operator Or Lens Colourblue
    Package Weight(Lbs)25.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP69K, IP67
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    0.23855620981012848
    Environmental Disclosure
    ENVPEP2303008EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2303008EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Nema Degree Of ProtectionUL type 4/13, NEMA 4 UL 508, NEMA 13, NEMA 12
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2303008EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2024-03-24
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    head for push-button
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8
    EC000221
    ETIM 9EC000221

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    basic element
