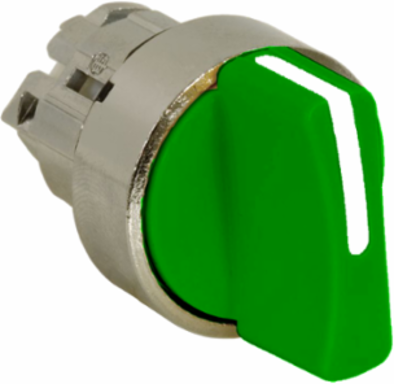

Schneider Electric ZB4BD503 Harmony XB4 Green Selector Switch Head 22 mm 3 Position IP69K
- MPN: ZB4BD503
- PPN: SCH-ZB4BD503
CAD
$25.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB4, green selector switch head with standard handle has 3 positions, operates with spring return to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- chromium plated metal
- Operator Position Information
- 3 positions +/- 45°
- Type Of Operator
- to centre spring return
- Shape Of Signaling Unit Head
- round
- Head Type
- standard
Range Of ProductHarmony XB4
Operator Profilegreen standard handle
Mounting Diameter22 mm
Product Or Component Typehead for selector switch
Device Short NameZB4
Complementary
- Mechanical Durability
- 1000000 cycles
- Cad Overall Width
- 29 mm
- Net Weight
- 0.04 kg
- Device Presentation
- basic element
Electrical Composition CodeC3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
Cad Overall Depth44 mm
Cad Overall Height29 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Environment
- Product Certifications
- GL || BV || UL listed || CSA || LROS (Lloyds register of shipping) || DNV
- Ambient Air Temperature For Operation
- -40-70 °C
- Overvoltage Category
- class I IEC 60536
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP67 IEC 60529 || IP69 || IP69K
Ik Degree Of ProtectionIK06 conforming to IEC 50102
Ambient Air Temperature For Storage-40-70 °C
StandardsJIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
