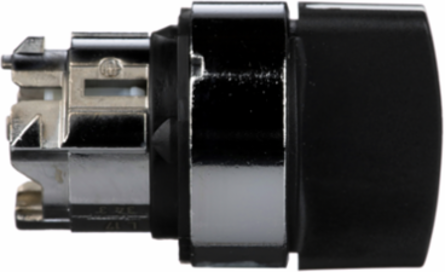

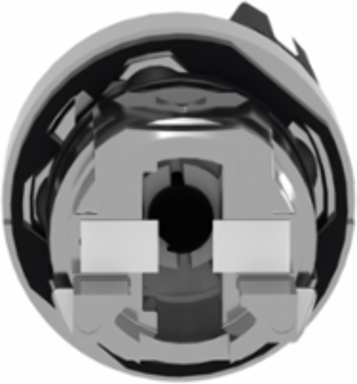

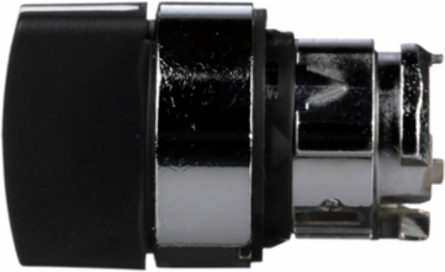

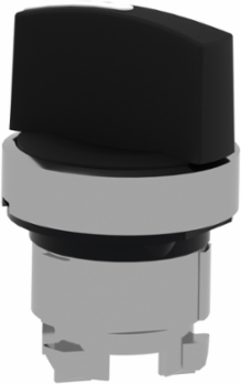

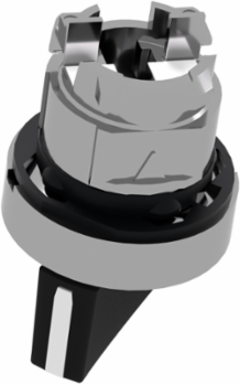

Schneider Electric ZB4BD2 Harmony XB4 Metal Selector Switch Head, 22mm, 2 Positions, IP69K
- MPN: ZB4BD2
- PPN: SCH-ZB4BD2
CAD
$25.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features

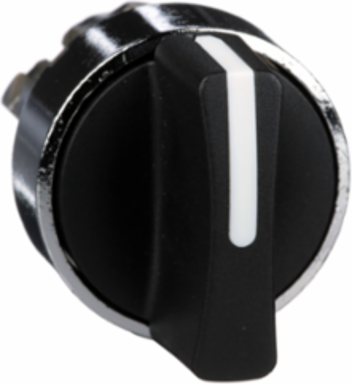

- The ZB4BD2 is a 2-position, 90-degree selector switch head from the Schneider Electric Harmony XB4 metal range. It features "Stay-Put" (maintained) operation, meaning the handle remains in the position to which it is turned (Left or Right) until manually moved again, making it ideal for basic On/Off or Auto/Manual selection.
- Constructed with a robust chromium-plated metal bezel, this operator is engineered to withstand high-impact and high-vibration environments. It is rated IP66, IP67, IP69, and IP69K, providing complete protection against dust and high-pressure hot water washdowns perfect for food processing, automotive, and outdoor control panels.
- The unit features a standard black handle that provides a clean, professional appearance and ergonomic grip. As a non-illuminated head, it relies on the physical position of the lever to indicate the machine's state, providing a clear visual confirmation of the selected mode from a distance.
- This part number is the operator head only. To create a functional switch, you must pair it with a metal mounting collar (ZB4BZ009) and at least one contact block (such as the ZB101 for Normally Open or ZB102 for Normally Closed). Its modular design allows you to stack multiple contact blocks to control several independent circuits simultaneously.
- Designed to fit a standard 22.5mm (7/8") hole, the ZB4BD2 is compatible with most industrial control stations and enclosures. It is UL Listed, CSA Certified, and CE marked, ensuring it meets global safety and engineering standards for industrial machinery and power distribution systems across North America and Europe.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Mexico, United States
Physical Attributes

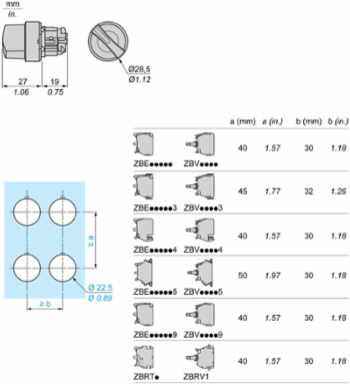

- Cad Overall Depth
- 44 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- chromium plated metal, chromium plated metal
- Electrical Composition Code
- C3 6 single front mountingC4 6 single and double front mountingC5 5 single front mounting, C6 5 single and double front mountingC7 4 single front mounting, C8 4 single and double front mountingC11 3 single front mountingC15 1 single front mounting
- Certificate Agency
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0459398383, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.2662582233
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 66 %
- Device Short Name
- ZB4
- Head Type
- standard
- Mechanical Durability
- 1000000 cycles
- Operator Position Information
- 2 positions 90°
- Overvoltage Category
- class I conforming to IEC 60536
- Product Or Component Type
- head for selector switch
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.3 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Cap/Operator Or Lens Colour
- black
- Package Weight(Lbs)
- 44.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizableno, 0
Operator Pos Information2 positions 90°
Carbon Footprint Of The Distribution Phase [A4]0.0052307538, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0064685381
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
Service Catalog ItemFinished good
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308005EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content21 %
Compatibility CodeZB4
Group Of Productnon illuminated
Main Groupselector switch
Mounting Diameter22.5 mm
Operator Profileblack standard handle
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingNo
Type Of Operatorstay put
Pep CodeENVPEP2308005EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %84
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP67 IEC 60529, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 21 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.3238973535
- Environmental Disclosure
- ENVPEP2308005EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2308005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308005EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for selector switch
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
