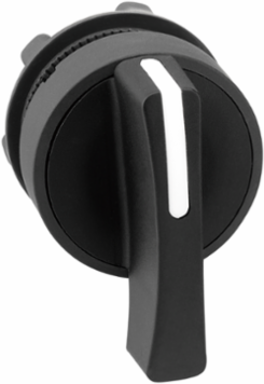

Schneider Electric ZB5AJ8 Harmony XB5 Selector Switch Head, 22 mm, 3 Position Spring Return, IP69K

MPN: ZB5AJ8
PPN: SCH-ZB5AJ8

$31.29

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This black switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Physical Attributes

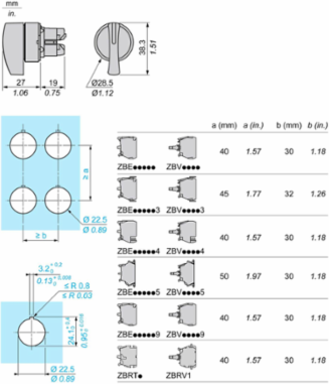

Cad Overall Depth	46 mm
Cad Overall Width	29 mm

Cad Overall Height	38 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Bezel Material	dark grey plastic, dark grey plastic
Electrical Composition Code	C3 6 single front mountingC4 6 single and double front mountingC5 5 single front mounting, C6 5 single and double front mountingC7 4 single front mounting, C8 4 single and double front mountingC11 3 single front mounting, SF1 3 single front mountingSR1 3 single rear mounting
Certificate Agency	CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0271387103
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.1 kg CO2 eq., 0.136085424
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308008EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Average Percentage Of Recycled Metal Content	60 %
Compatibility Code	ZB5
Group Of Product	long handle not padlockable
Main Group	selector switch
Mounting Diameter	22 mm
Operator Position Information	3 positions +/- 45°
Overvoltage Category	class II conforming to IEC 60536
Product Or Component Type	head for selector switch
Range Of Product	Harmony XB5
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Sustainable Packaging	No
Type Of Operator	right to centre spring return
Type Of Operator 3 Type Of Operator	spring return
Pep Code	ENVPEP2308009_V1-EN
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Cap/Operator Or Lens Colour	black
Package Weight(Lbs)	20.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	0, no
Operator Pos Information	3 positions +/- 45°
Carbon Footprint Of The Distribution Phase [A4]	0.0026153846, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0030833506, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	28 %
Device Short Name	ZB5
Head Type	standard
Mechanical Durability	1000000 cycles
Operator Additional Information	non padlockable
Operator Profile	black long handle
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Station Name	XALD 1...5 cut-outsXALK 2...5 cut-outs
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Type Of Operator 3 Return	right to centre
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.004 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP67 IEC 60529, IP69 IEC 60529, IP69K
Take Back	No
Recycled Metal Content At Cr Level	60 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.1689228696
Environmental Disclosure	ENVPEP2308009_V1-EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2308009_V1-EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	UL type 4X/13, NEMA 13, NEMA 4X
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308008EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
